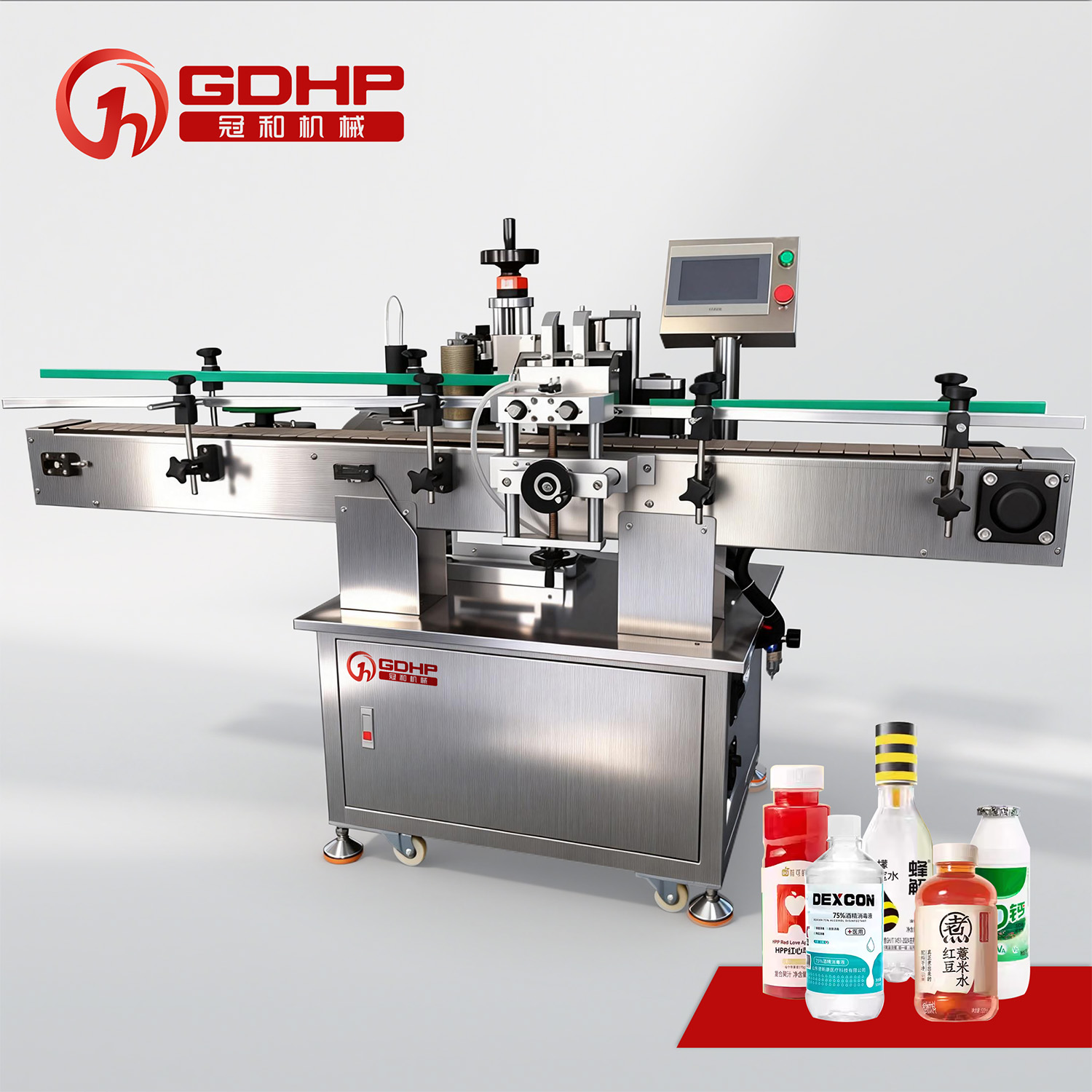

Fully Automatic Vertical Round Bottle Labeling Machine

Name: Fully Automatic Vertical Round Bottle Labeling Machine | GDHP
Price: 20000.00 USD
Availability: InStock

The Fully Automatic Vertical Round Bottle Labeling Machine is a high-precision solution designed for seamless integration into high-speed production lines. Engineered for exceptional accuracy, it provides consistent, bubble-free label application for cylindrical containers. From skincare and hand sanitizers to food cans, wine bottles, and even lubricating oil, this versatile machine handles diverse product types with ease.

Get A Quote

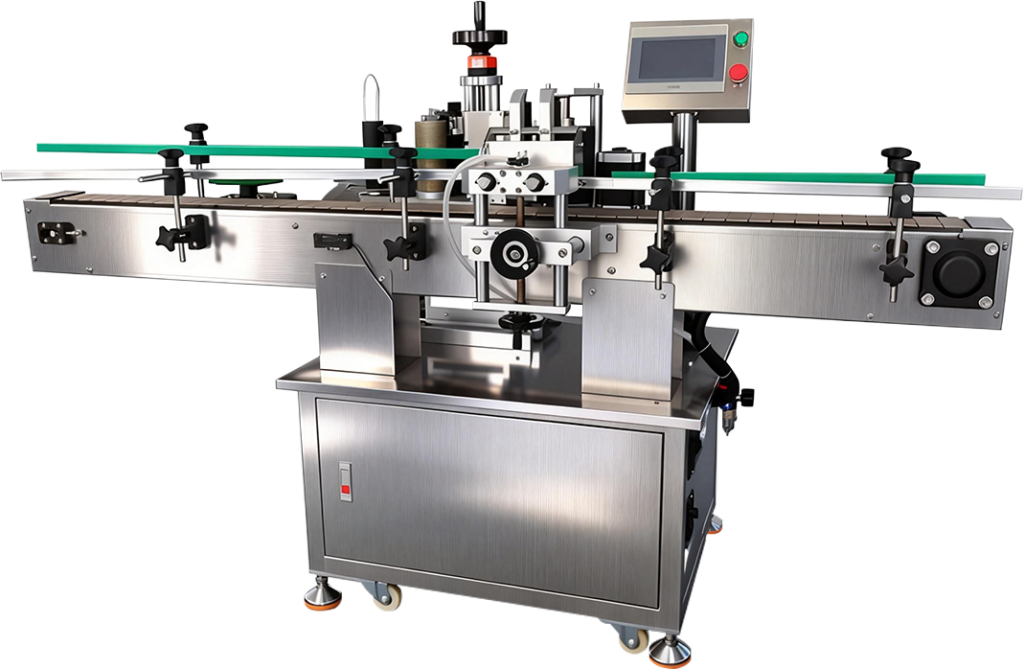

Fully Automatic Vertical Round Bottle Labeling Machine

Direct Manufacturer from China 23+ years of industry experience

Irregularly Shaped Bottle Filling and Capping Machine

Labeling accuracy ±1mm

Intelligent photoelectric tracking

PLC intelligent control

Applicable Industries

pharmaceutical industry

Drug electronic supervision code, secondary/tertiary packaging labeling, anti-counterfeiting and anti-diversion traceability

food industry

Production date/batch number/ ingredient list printing, integrated weighing and pricing, allergen labeling, low temperature resistance/oil and water/fog resistance, one item one code traceability.

Daily chemical industry

Transparent labels with smooth, bubble -free surfaces; full/half circumference labeling; high-speed production; exquisite packaging.

alcohol industry

The seam accuracy of the label is ±1mm, and the label is applied smoothly without air bubbles.

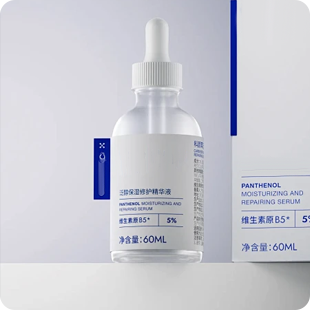

skin care products

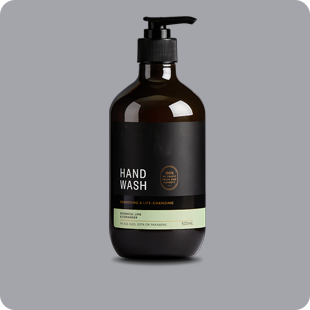

handwashing fluid

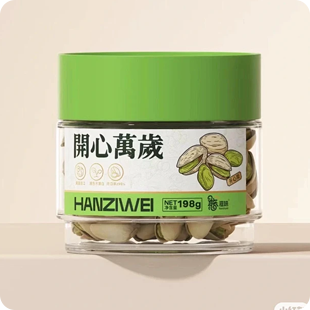

food cans

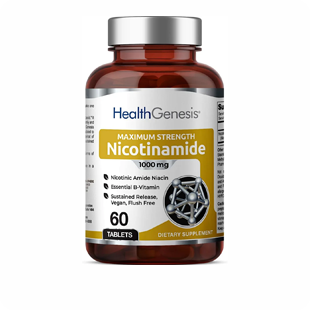

drug

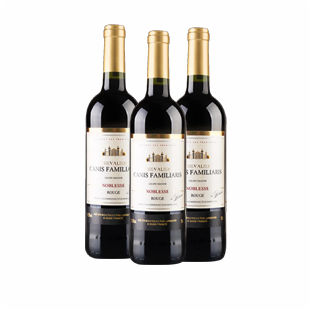

wine bottle

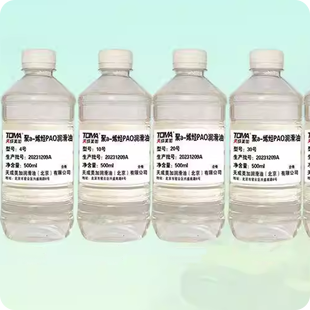

lubricating oil

Fully Automatic Vertical Round Bottle Labeling Machine Technical parameters

Labeling Speed	Approx. 0-150P/min (depending on product and label size)
Labeling Accuracy	±1mm (excluding product label errors, etc.)
Applicable Product Sizes	Diameter 20-110mm; Height 30-350mm
Applicable Label Range	Length 10-300mm, Backing Paper Width 10-150mm
Maximum Label Supply	Outer Diameter up to 300mm, Inner Diameter 76mm
Ambient Temperature/Humidity	0-50℃/15-85%
Voltage Specifications	AC220V, 50HZ
Dimensions and Weight	Approx. 2000mm (L) x 1300mm (W) x 1600mm (H) / Approx. 150kg

Why Choose Us

Common pain points

Labeling issues: crooked, bubbly, wrinkled

Label waste is serious and costs remain high.

Product changeover and debugging are time-consuming and labor-intensive.

The equipment requires minor repairs every three days and major repairs every five days.

Slow after-sales response affects production.

Our Solution

The elastic label-applying belt with eight degrees of freedom adjustment improves label flatness by 80%.

Automatic photoelectric tracking ensures labeling is applied only to items and self- calibrates when labels are missing, reducing label waste by 90%.

Tool-free adjustment structure, quick 5-minute changeover, worry-free production of multiple products in daily chemical and pharmaceutical industries.

Using Siemens for core components reduces the failure rate by 70%.

Rapid after-sales response and on-site service

What are the benefits of Round Bottle Labeling?

360° branding space: Wraparound labels provide more room for logos, product information, instructions, ingredients, and regulatory details without cluttering the front of the bottle.
Professional appearance: A properly aligned label creates a clean, high-quality look that enhances shelf appeal and reinforces brand identity.
Improved product recognition: Consistent label placement helps customers quickly identify your product and builds brand recognition.
Works with many bottle types: Round labeling is suitable for glass, plastic, and metal bottles across industries such as food and beverage, cosmetics, pharmaceuticals, chemicals, and personal care.
Supports high-speed production: Automated round bottle labeling systems can label hundreds or even thousands of bottles per hour with consistent placement, reducing labor costs and increasing throughput.
Accurate and consistent application: Modern labeling equipment minimizes wrinkles, bubbles, and misalignment, reducing waste and improving quality.
Durable labeling: When paired with the right adhesive and label material, labels stay securely attached despite moisture, refrigeration, handling, or transportation.
Flexible label options: Manufacturers can apply front-and-back labels, full wraparound labels, transparent “no-label look” labels, or tamper-evident seals depending on product requirements.
Regulatory compliance: The additional surface area helps accommodate required information such as nutrition facts, ingredients, batch numbers, expiration dates, warnings, and barcodes.
Cost-effective: Automation reduces manual labor, improves production efficiency, and lowers the cost per labeled bottle over time.

How to maintain an automatic bottle label machine?

1. Clean the machine regularly

Remove dust, adhesive residue, and label scraps after each production run.
Wipe rollers, conveyor belts, sensors, and the label dispensing plate with a soft cloth.
Use cleaning agents recommended by the manufacturer to avoid damaging components.

2. Inspect rollers and belts

Check drive belts and conveyor belts for wear, cracks, or misalignment.
Ensure rollers rotate smoothly without excessive wear or adhesive buildup.
Replace worn parts before they affect labeling quality.

3. Keep sensors clean and calibrated

Clean photoelectric sensors and label gap sensors regularly.
Verify sensor alignment and sensitivity to prevent missed or double labels.
Recalibrate sensors when changing label materials or bottle sizes.

4. Lubricate moving parts

Apply lubricant only to components specified in the maintenance manual.
Avoid over-lubrication, as excess grease can attract dust and contaminate labels.
Follow the recommended lubrication schedule.

5. Check label alignment

Inspect label tracking before production starts.
Adjust guide rails and label rollers if labels are skewed or wrinkled.
Run a few test bottles after any setup change.

6. Tighten fasteners

Periodically inspect screws, brackets, and mounting hardware.
Tighten any loose components to minimize vibration and maintain accuracy.

7. Inspect electrical components

Check cables and connectors for wear or damage.
Ensure emergency stop buttons and safety switches function correctly.
Keep the control panel dry and free from dust.

8. Monitor wear parts

Replace consumable components before failure, including:

Feed rollers
Pressure rollers
Belts
Bearings
Peel plates
Springs and tension mechanisms

9. Update software and settings

If your labeling machine uses a PLC or touchscreen controller:

Back up machine settings regularly.
Install firmware or software updates provided by the manufacturer.
Verify recipes after updates to ensure correct operation.

10. Train operators

Well-trained operators are less likely to cause preventable issues. They should know how to:

Load labels correctly
Adjust guides and sensors
Recognize early signs of wear
Stop the machine safely if a fault occurs

Fully Automatic Vertical Round Bottle Labeling Machine FAQ

What is a Fully Automatic Vertical Round Bottle Labeling Machine?

This is an inline automated system that integrates mechanical, pneumatic, and microelectronic control technologies. Utilizing a vertical conveying method, it is specifically designed for the circumferential or semi-circumferential labeling of cylindrical containers. Through a PLC control system and high-precision sensors, it executes a fully automated process—from bottle separation and positioning to labeling and label smoothing—and can be seamlessly integrated into existing filling and capping production lines.

What container materials and size ranges does the Fully Automatic Vertical Round Bottle Labeling Machine support?

It is widely applicable to PET/plastic bottles, glass bottles, metal cans, and round containers made of composite materials. For containers with exceptionally large diameters (such as large-capacity paint pails) or extremely small volumes (such as vials or blood collection tubes), we offer custom-engineered bottle-separation mechanisms and conveying systems to ensure stable handling and transport.

How does the Round Bottle Labeling Machine ensure a bubble-free and wrinkle-free labeling process?

We employ multiple physical compensation mechanisms to guarantee labeling quality. The label-peeling head features 8-axis spatial adjustability, allowing for precise angle compensation to accommodate even slight conical variations in the bottle body.

What are the labeling accuracy and repetitive positioning accuracy of the machine?

±1 mm. For the high-end pharmaceutical or cosmetics industries, we can install a visual inspection system (CCD); through secondary positioning and deviation correction, this allows us to further refine accuracy within even stricter tolerances.

Does the round bottle labeling machine utilize stepper motors or servo motors?

The machine comes standard with a high-performance servo motor drive system across all functions. Compared to stepper motors, the servo system features closed-loop feedback control; this prevents “step loss” during continuous, high-load operation and offers faster start-stop response speeds, serving as the core hardware foundation for ensuring a labeling accuracy of ±1 mm.
