VFFS Machine
Streamline your production line with GDHP’s automated vertical form fill seal equipment. Integrating precise bag forming, multi-material filling, and airtight sealing into a single continuous system, our VFFS technology adapts to granules, powders, and liquids to maximize output while drastically reducing material waste.
Products Categories
Premade pouch filling machine utilizes weight-based filling and is suitable for the daily chemical and food industries. It covers a wide range of products, including potato chips, herbal tea, shrimp crackers, popcorn, laundry detergent, and desiccant packets.- The round-shaped packaging format is suitable for tea, coffee, and other powdered products, including those requiring moisture-proof packaging. The filling range is 2–3g, and the packaging speed is 40–50 bags per minute.

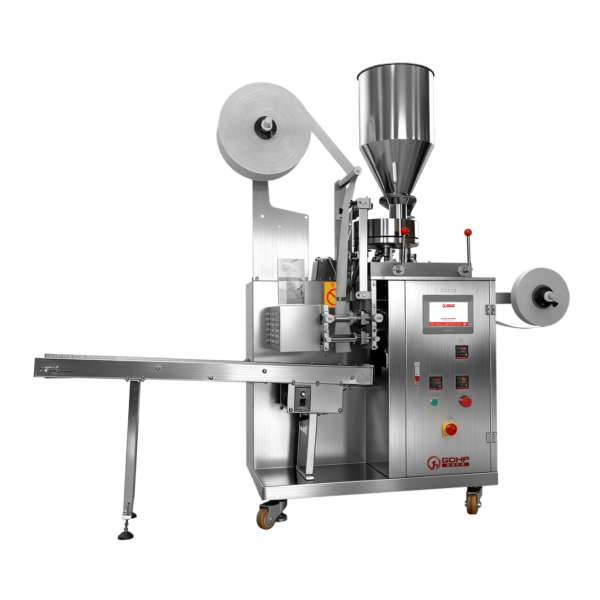

- The tea bag form-fill-seal machine is suitable for packaging tea, coffee, and other plant-based beverages. It employs an automated process—comprising forming, filling, and sealing stages—to fully and automatically package the materials. As no manual intervention is required during the filling process, it significantly ensures that the finished products remain free from contamination, thereby complying with…
- Streamline your production with our high-efficiency Automatic Liquid Form Fill Seal Machine. Engineered for versatility and precision, this machine utilizes advanced film wrapping technology to form, fill, and seal liquid pouches with ease. Supports adjustable packaging capacities from 50ml to 550ml, making it ideal for various serving sizes. Achieve a steady output of 1100–1300 bags…
Key Advantages and Value Proposition of GDHP VFFS Solutions
High Speed & Optimized Throughput
Engineered for continuous operation, GDHP vertical form fill seal machinery achieves consistent speeds tailored for mid-to-high capacity packaging demands while minimizing material waste.
Exceptional Film & Bag Flexibility
Seamlessly adapt to diverse roll film materials and bag geometries, including standard pillow bags, gusseted pouches, and fold-angle bags, with minimal changeover down-time.
Precision Dosing & Product Protection
Integrates flawlessly with multihead weighers, auger fillers, and piston pumps to guarantee exact filling tolerances, airtight seal integrity, and reduced product giveaway.
Intelligent PLC & Touchscreen Control
Features an intuitive user interface with one-touch recipe recalls, real-time operational diagnostics, and data logging capabilities for simplified production monitoring.
Seamless Downstream System Integration
Easily interfaces with upstream feeding conveyors and downstream checkweighers or case packers, allowing our engineering team to maximize your total line efficiency.
Wide Application: Industries & Bag Styles for VFFS Equipment
GDHP Vertical Form Fill Seal (VFFS) systems provide highly adaptable packaging solutions across diverse market sectors. From small-batch specialty items to high-speed continuous manufacturing, our systems adjust seamlessly to your precise material characteristics and facility requirements.
Target Industries
- Food & Beverage: Snacks, frozen foods, nuts, coffee, pet food, and granulates
- Powders & Spices: Dairy powders, flour, seasoning mixes, and chemical additives
- Liquids & Pastes: Sauces, condiments, juices, syrups, and personal care liquids
- Agrochemicals & Feed: Seeds, granular fertilizers, premixes, and animal feed
- Chemicals & Industrial: Powdered raw materials, small resins, and manufacturing hardware
Supported Bag Styles & Films
- Pillow Bags: Classic, economical, and dependable flexible packaging
- Gusseted Bags: Expandable sides that maximize filling volume
- 3-Side & 4-Side Seal: Secure, airtight edges ideal for moisture-sensitive products
- •Block/Flat-Bottom Pouches: Premium shelf presentation with excellent stability
- Compatible Film Materials: PE/PP, laminated structures, and heat-sealable paper composites
GDHP engineers application-driven VFFS machinery equipped with advanced motion controls to optimize film tensioning and cross-sealing parameters. This ensures high structural integrity for your pouches, significantly reducing leak rates and material waste while maintaining strict compliance with hygienic standards.
Not sure if your specific film type or product material is compatible with our standard forming sets? Contact our engineering team today to request a custom material trial or an obligation-free line configuration proposal.
VFFS Packaging Process & Operating Principles
1. Film Unwinding & Alignment
The roll stock film is fed through tensioning rollers and automatic tracking systems to ensure smooth, precise alignment before bag formation begins.
2. Tube Formation
The flat film moves over a custom-engineered forming collar, which smoothly shapes the material into a continuous vertical cylinder around the filling tube.
3. Vertical Sealing
A specialized heating bar seals the overlapping edges of the film cylinder vertically, creating a perfectly airtight longitudinal seam with minimal heat exposure.
4. Precision Dosing & Product Filling
Synchronized with an upstream multihead weigher, auger, or liquid pump, the system drops the exact volume of product down through the center of the forming tube into the pouch.
5. Horizontal Sealing & Cutting
Heavy-duty horizontal jaws close to seal the top of the filled bag and the bottom of the next pouch simultaneously. An integrated blade cuts cleanly between them to separate the unit.
6. Finished Pouch Discharge
The completed, securely sealed package is gently discharged onto an outfeed conveyor, ready for checkweighing, metal detection, and secondary case packing.
Rigorous Quality Control & Global Compliance Certifications
At GDHP, we serve high-standard industries like food, chemical, and consumer goods where packaging reliability is non-negotiable. Our manufacturing processes strictly follow international quality systems, ensuring every VFFS machine minimizes downtime and delivers defect-free seals.
ISO 9001:2015 Certification
Our entire design, machining, and assembly lifecycle is governed by an ISO-certified quality management system to guarantee predictable equipment performance.
Sanitary & GMP Compliance
All material contact parts are engineered from food-grade stainless steel, ensuring full compliance with strict hygiene, washdown, and product safety standards.
CE Marking & Safety
GDHP vertical form fill seal equipment complies with all applicable EU safety, health, and environmental regulations for seamless global deployment.
Pre-Shipment Endurance Tests
Every vertical bagger undergoes extensive multi-point functional diagnostics and continuous cycling under load to eliminate field-commissioning issues.
Export & Local Standards
We configure electrical and mechanical components to match regional regulatory mandates, facilitating rapid plant inspection approvals.
Third-Party & Factory Audits
We fully support independent quality verifications and provide comprehensive material traceability reports and factory acceptance testing (FAT) logs.
Key Criteria for Choosing the Right VFFS Configuration
Maximize Output & Protect Equipment Lifespan
| Item | Action |
|---|---|
| Daily Cleaning Routines | Thoroughly purge product remnants, fine dust, and packaging debris from all raw material contact zones and seal mechanisms. |
| Weekly Hardware Inspections | Examine sealing jaw profiles, film cutting knives, guide rollers, and belt wear levels to resolve minor degradation early. |
| Systematic Lubrication Schedules | Apply clean, food-grade lubricants to all critical bearing paths and driving pneumatic linkages as specified by GDHP engineering guidelines. |
| Monthly Temperature & Sensor Calibration | Verify thermocouple feedback and calibrate thermal bars precisely to maintain airtight structural seals and zero film scrap. |
Operational Troubleshooting Guide
Weak or Defective Bag Sealing
- Verify sealing jaw temperature settings match the thermal requirements of your specific film material.
- Inspect the sealing jaws for material buildup, carbon residueized crusting, or structural degradation.
- Check for product contamination or fine dust caught directly within the seal zone area.
- Ensure the mechanical sealing pressure is balanced evenly across the entire surface of the jaws.
Film Off-Tracking and Wrinkling
- Verify that the roll film is centered accurately on the unwind shaft.
- Clean any accumulated dust, adhesive, or residue off the forming collar and guide rollers.
- Test the automated edge-guide sensors to confirm the dynamic tracking correction is responsive.
- Adjust the film tension system to eliminate loose edges or uneven pulling forces.
Inconsistent Product Fill Weights
- Re-calibrate the multi-head scale, auger filler, or liquid piston pump dosing parameters.
- Check for material bridging, product blockages, or moisture stickiness inside the feeding chute.
- Confirm the raw product volume inside the top hopper stays uniform to prevent density changes.
- Verify that filler discharge timing aligns precisely with the forming machine cycle.
Film Jamming or Feeding Failures
- Stop operation immediately and safely remove any trapped material from the forming tube assembly.
- Inspect the friction surfaces of the film pull belts for physical wear or loss of grip.
- Ensure the cutting blade extends fully and cleanly severs the bags without catching.
- Confirm that the vacuum pull belt system or mechanical drive motor has proper torque settings.
FAQ
How long does it take to change over bag widths or product types on a GDHP VFFS machine?
For standard GDHP models, replacing the forming tube assembly to change bag width and recalibrating the dosing system takes between 10 to 20 minutes. This changeover time can be minimized further by utilizing the pre-saved recipe parameters on the PLC touch screen system.
What types of bag styles can a single vertical packaging machine support?
Our standard base units natively produce pillow bags and three-side seals. Advanced pouch styles, including gusseted bags, stand-up bags, and flat-bottom pouches, can be accommodated seamlessly depending on the specific machine model and selected optional module configurations.
What are the deployment and operator training procedures upon equipment delivery?
GDHP provides full on-site installation, operational calibration, and systematic hands-on training for your production operators. We complement this onboarding with continuous remote technical support to ensure your personnel run the packaging line with total confidence.
What are the standard maintenance intervals and wear-and-tear component requirements?
GDHP machinery is engineered for extreme durability, focusing primarily on routine cleaning and fast component checks. A complete wear-and-tear spare parts list—including heating elements, blades, and sealing bands—along with their exact replacement life cycles is provided upon delivery.
Can these VFFS systems integrate directly into existing upstream and downstream production lines?
Yes. All of our vertical packaging systems feature flexible open interfaces. We design specialized synchronization layouts tailored to your existing dosing systems upstream, as well as downstream checkweighers, case packers, or cartoning systems.
