Case Erector
Engineered for multi-shift reliability in food, beverage, e-commerce logistics, and chemical plants, our automated systems integrate seamlessly with down-line case packers and sealers to optimize your secondary packaging.
Products Categories

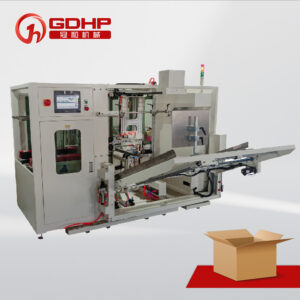

Boost productivity with our fully automatic high-speed case erector. Fast, reliable, and seamless box forming for high-volume industrial packaging lines.
Why Choose GDHP Automatic Case Erectors?
Engineered for demanding manufacturing environments, GDHP automatic case erectors deliver the speed, forming precision, and multi-specification versatility required to optimize your secondary packaging line. From standalone units to fully integrated systems, our solutions eliminate manual bottlenecks, reduce material waste, and ensure reliable, multi-shift continuous operation.
Square Carton Forming
Advanced vacuum suction and precise bottom-folding mechanisms ensure perfectly square case erection, eliminates manual errors, and dramatically reduces carton collapsing or jamming risks.
High-Speed Continuous Throughput
Utilizing optimized servo-driven motion curves, our equipment achieves high-capacity continuous forming to effortlessly match your peak production demands and multi-shift schedules.
Multi-Size Case Compatibility
Quickly adapt to varying carton lengths, widths, and heights via intuitive manual or automated adjustments, keeping changeover times minimal for flexible batch production.
Seamless Line Integration
Standardized electrical and mechanical interfaces allow effortless synchronization with upstream case packers, downstream sealers, palletizers, and existing conveyor networks.
Smart Control & Diagnostics
Centralized touchscreen interfaces provide real-time tracking of output, material depletion alerts, and remote diagnostic capabilities for simplified operation and management.
Open-Frame Heavy Duty Build
Built with premium structural materials and an accessible, modular configuration that reduces maintenance downtime, optimizes tape or hot-melt usage, and extends service life.
Multi-Industry Case Erecting Applications & Carton Compatibility
At GDHP, we engineers high-performance automatic case erectors tailored to your specific outer packaging configurations. Our systems deliver square-formed cases, reliable bottom sealing, and robust integration with existing end-of-line packaging systems, minimizing manual material handling across demanding production environments.
Matching Equipment to Your Specific Packaging Demands
- Wide size range compatibility for RSC, FOL, and multi-depth corrugated cartons
- Quick, toolless changeovers with hand-wheel adjustments and digital scale readouts
- Seamless integration with case packers, top sealers, and downstream palletizing loops
- Optimized tape or hot-melt glue consumption to reduce overall operational costs
- Multi-shift reliability engineered for ambient storage and high-throughput packaging lines
Food & Beverage
Handles bottled beverage trays, heavy canned food cases, and snack cartons. Designed to resist dust and maintain high-speed forming with minimal downtime.
E-Commerce & Logistics
Built for high-volume order fulfillment centers managing varied box dimensions, quick recipe call-outs, and rapid seasonal peak demands.
Daily Chemical & Pharma
Ensures structural squareness for personal care and medicinal shipper boxes, preventing product skewing during subsequent robotic pick-and-place loading.
How Our Automatic Case Erector Works: Step-by-Step Box Formation
Flat Blank Magazine Loading
Folded flat cardboard blanks are stacked into the high-capacity storage magazine. The integrated drive mechanism automatically indexes and feeds sheets into the extraction station one by one without stopping the production line.
Vacuum Extraction & Unfolding
Heavy-duty vacuum suction cups grip the side of the flat carton, pulling it open reliably. This pneumatic mechanism forces the square formation, ensuring the cardboard shape is fully squared and upright to prevent jamming.
Bottom Flap Folding Sequence
Synchronized mechanical folding arms fold the front, rear, and side bottom flaps in a rapid, continuous motion. This precise physical guiding guarantees clean right angles and a perfectly flat base structure.
Bottom Sealing (Tape or Hot Melt)
The squared box moves through the sealing unit where high-tack tape or precision hot melt glue is applied uniformly. This forms a rigid, secure bottom seal ready to hold heavy loads throughout transport.
Outfeed Discharge & Packaging Integration
The fully formed box is discharged onto the conveyor line at your exact production pace. GDHP systems seamlessly interface with case packers, checkweighers, and top sealers to complete your end-of-line packaging automation.
How to Choose the Right Automatic Case Erector
Selecting the ideal case erecting system depends on your target daily output, carton dimensions, and packaging line integration requirements. GDHP offers high-performance machinery engineered to optimize line efficiency, eliminate squareness errors, and lower your overall cost per box.
Medium-Speed Case Erector
Engineered for batch production with concentrated box sizes. Ideal for food processing, consumer goods, and regional e-commerce fulfillment hubs requiring fast, manual adjustments.
- Supports wide RSC size ranges
- Quick toolless hand-crank adjustments
- Compact, space-saving footprint
High-Speed Case Erector
Built for continuous, multi-shift packaging lines demanding rapid cycle times. Features dual vacuum cups and optimized mechanical arms for flawless high-speed bottom folding.
- Up to 3,000 cases per hour
- Seamless case packer & sealer link
- Automated low-carton alarm system
Heavy-Duty & Rigid Carton Model
Specially designed for thick multi-wall corrugated cardboard and heavy industrial packaging. High-torque pneumatic or servo drives prevent spring-back and incomplete adhesive sealing.
- Enhanced vacuum suction power
- Reinforced structural steel frame
- Tape or hot melt glue compatibility
Technical Selection Specifications
| Selection Factors | Medium-Speed System | High-Speed System | Heavy-Duty System |
|---|---|---|---|
| Target Industries | Food, Cosmetics, E-commerce hubs | Beverage, High-volume logistics | Appliances, Heavy hardware, Chemicals |
| Max Speed (cases/min) | 12–18 | 25–50 | 10–15 |
| Cardboard Compatibility | Single / Double wall (Standard) | Single / Double wall (Premium) | Heavy double / Triple wall corrugated |
| Automation Level | Standalone or Line integration | Fully integrated end-of-line systems | Standalone heavy packaging stations |
| Line Layout Footprint | Compact & Mobile | Extended horizontal magazine | Heavy-duty modular frame |
Industrial Safety Standards and Quality Assurance
At GDHP, our case erecting and industrial packaging automation systems are engineered to meet strict global safety norms and manufacturing regulations. Every case erector undergoes intensive continuous run testing and carton forming stability checks to guarantee safe, multi-shift operation in high-throughput production environments.
Industrial Compliance & CE Certification
Our packaging equipment is designed in strict accordance with machinery safety directives and electrical codes. We provide CE certification, comprehensive third-party test reports, and fully compliant documentation required by enterprise-level procurement and international factory audits.
Heavy-Duty Hardware & Operational Safety
Built with high-tensile structural steel and wear-resistant moving components, GDHP case erectors feature transparent safety interlocking doors, multi-point emergency stops, and mechanical overload protection to minimize operator risk and eliminate downtime.
Traceable Testing & Quality Control
Before leaving our facility, every automated packaging machine undergoes rigorous pre-shipment verification using your specific corrugated board samples. This ensures reliable carton squaring, precise bottom folding, and flawless tape or hot-melt glue sealing performance from day one.
- Full electrical schematics, maintenance manuals, and compliance documentation provided
- Corrosion-resistant exterior finishes and optional stainless steel components for food & chemical plants
- Seamless integration with factory MES/ERP via standardized digital data interfaces
FAQ – Label Machines by GDHP
How do I choose the right case erector speed for my line?
Calculate your required hourly output based on peak demand shifts. Mid-speed case formers suit low-to-medium throughput, while high-speed servo-driven erectors are optimized for rapid, multi-line downstream packaging integration. GDHP engineers can help calculate line balancing.
How many different box sizes can a single machine handle?
Standard GDHP systems adapt to a wide range of box dimensions. Switchovers are easily achieved using hand-cranks, digital indicators, or automated touchscreen recipe selection. For highly divergent sizes, we offer customizable quick-adjust tooling.
Will soft or ultra-thick corrugated cardboard affect squareness?
Material variations directly impact suction and folding precision. GDHP addresses this by performing initial sample testing on your specific blanks, then fine-tuning vacuum forces and mechanical folding parameters to eliminate box collapse.
What daily maintenance is required for your case formers?
Routine care is simple and includes clearing paper debris, checking tape or hot melt glue levels, and lubricating key moving parts. We provide comprehensive manuals and on-site operator training to ensure minimal operational downtime.
Can GDHP equipment integrate with my existing line?
Yes. Our systems are designed with open mechanical layouts and flexible electrical interfaces. We provide seamless integration with your existing case packers, top sealers, palletizers, and conveyor networks for a synchronized workflow.
What safety and compliance standards do your systems meet?
Our automated machinery complies with rigid industrial safety standards. Standard features include transparent protective guarding, safety door interlocks, overload sensors, and emergency stop circuits to minimize operator risk.
