COSMETICS & PERSONAL CARE · FILLING SERIES
Configure filling, capping, sealing, labeling, and cleaning support around your formula, package, and production goals—from serums and shampoos to creams, balms, and household cleaning liquids.
Formula behavior, package geometry, and cleaning requirements directly affect line stability. The equipment should be selected around all three.
Fill weights, liquid levels, and clean cut-off behavior must remain consistent across the planned batch and container formats.
Colorants, fragrances, oils, and active ingredients make product-contact design, draining, and changeover procedures important.
Bottles, tubes, jars, pumps, and irregular packs may require dedicated guides, tooling, or format parts.
Foaming, stringing, air entrapment, and temperature-sensitive or high-viscosity formulas influence the pump and nozzle choice.
PRODUCT PORTFOLIO
Start with the formula and package format—not only the headline speed. The product examples below show how GDHP connects filling, capping, sealing, cleaning, and line integration around real cosmetics and clean-production use cases.
An integrated route for hair conditioner and similar liquid products, combining feeding, filling, capping, labeling, and packing around the bottle format.
A compact monoblock option for camellia oil, serum, and other free-flowing cosmetic liquids where filling and capping need a coordinated footprint.
Hot filling and controlled cooling support for balms, shoe creams, cleansing pastes, and other temperature-sensitive semi-solid products.
Tube monoblock filling and sealing for toothpaste, hand cream, ointment-like formulas, glue, and pigment products with format-specific tooling.
A multi-head peristaltic platform for low-viscosity cosmetic liquids when a gentle product path and easy cleaning or tubing changeover are priorities.

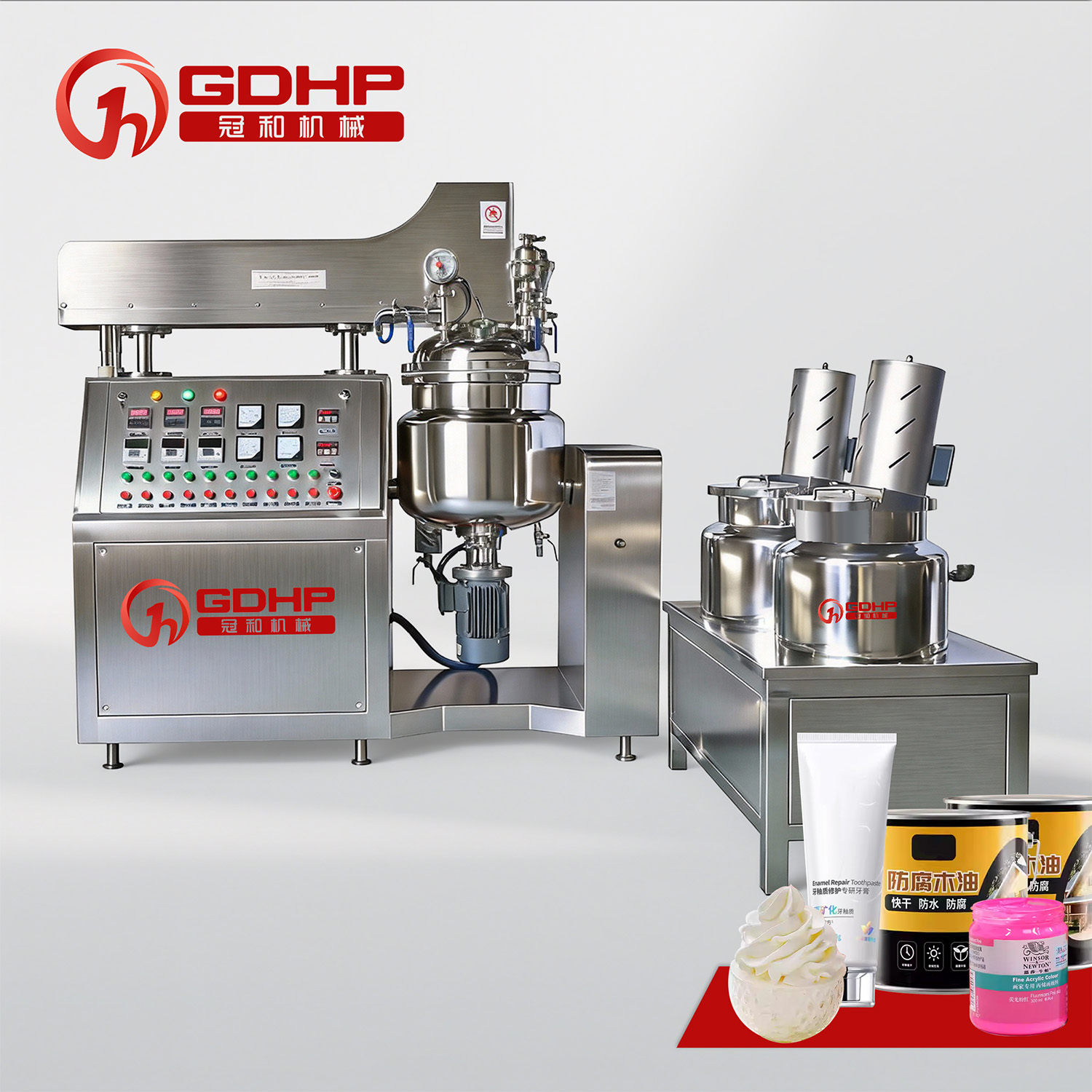

Vacuum homogenizing and mixing support for creams, body wash, conditioner, ointment, and pigment-containing formulations before filling.
Solution
Mechanism: piston or peristaltic dosing selected around viscosity, dose range, foaming, and cleaning requirements.
Best use cases: serums, oils, toners, shampoos, lotions, and other suitable liquids where controlled dosing and clean cut-off matter.
Key considerations: product-contact materials, anti-drip behavior, tubing or seal life, cleanability, and the required changeover sequence.
Mechanism: tubing-based product paths can be practical for suitable cosmetic liquids and cleaning-focused changeovers. Material compatibility and tubing selection remain formula-specific.
Best use cases: low-viscosity serums, oils, toners, shampoos, and other products that benefit from a gentle, contained liquid path.
Key considerations: tubing changeover, priming and dripping, air management, dosing range, and whether the formula foams or contains particles.
Mechanism: servo-driven piston profiles can be evaluated for higher-viscosity creams, lotions, gels, and emulsions where positive displacement and recipe-based control are required.
Best use cases: creams, body wash, conditioner, ointment-like products, and other semi-solids after viscosity and temperature testing.
Key considerations: hopper and pipeline design, air removal, heated or hot-fill conditions, nozzle cut-off, and cleaning access.
Selection guide
The best-fit cosmetics line depends on formula viscosity, foaming, container stability, closure sequence, hygiene strategy, and future format changes—not on one headline speed.
Use when batches are short, recipes change often, or a compact workstation is preferred for sampling and pilot production.
Use when filling, cap placement, capping, and discharge should share a compact, coordinated platform.
Use when bottle feeding, cleaning, filling, capping, labeling, coding, and inspection need coordinated interfaces.
Typical process architecture
A line may include all or only part of this sequence. The actual stations depend on the container, closure, formula, hygiene plan, labeling needs, and downstream packing requirements.
We configure every machine around your formula, package design, production target, and cleaning plan. Formula assessment covers viscosity, foaming, particulates, temperature sensitivity, and shear sensitivity. Container mapping covers bottles, jars, tubes, pumps, droppers, caps, and format tooling.
We assemble and test the equipment before shipment. Trials can check dosing behavior, container transfer, capping or sealing, label placement, synchronization, clean cut-off, and changeover using representative samples whenever available.
Our field engineers support installation and integration in your production environment. Start-up support covers positioning, utilities, recipe setup, cleaning, product changeovers, troubleshooting, and operator training.
We support reliable production throughout the equipment’s operational lifecycle with preventive maintenance guidance, remote troubleshooting, spare-parts support, and on-site service when required.
Beginner to project-ready
A cosmetics filling machine meters a liquid or semi-solid formula into its primary package and may integrate bottle or tube feeding, filling, closure placement, capping, sealing, inspection, labeling, coding, and downstream packing. The product category does not determine one universal machine; the formula, container, closure, output, hygiene plan, and validation approach do.
The word “cosmetics” does not determine the pump, filling range, automation level, or cleaning design. Those decisions come from viscosity, foaming, temperature, package geometry, closure style, production target, and changeover strategy.
Document viscosity, foaming tendency, suspended particles, sensitivity to shear, temperature, fragrance or oil content, cleaning method, and acceptable product-contact materials. Confirm dosing stability, priming loss, dripping, bubble control, and changeover cleaning before agreeing on the final pump and nozzle design.
For creams, emulsions, and high-value active formulas, also evaluate hold-up volume, air removal, hopper or pipeline heating, nozzle cut-off, residue retention, and cleaning access.
Round bottles can often use conventional guides, starwheels, or bottle feeders. Tubes, jars, pumps, handled packs, and asymmetric bottles may require dedicated nests or recirculating pucks. A puck or guide converts an unstable outer shape into a repeatable handling datum through filling and capping stations.
Send representative bottles, caps, pumps, tubes, jars, and liners early. Dimensional tolerances and closure variation are as important as the nominal drawing when designing sorting, pick-and-place, filling, capping, and torque control.
A percentage without its fill volume is not a complete acceptance criterion. Specify the target volume or weight, allowable deviation, test method, sampling plan, liquid conditions, and required output. Confirm whether published speed refers to bottles per minute, bottles per hour, or individual components, and whether it includes downstream operations.
Factory trials should use the intended formula or a representative test liquid together with the intended container and closure. Acceptance criteria should distinguish equipment design targets from results observed during FAT or site qualification.
The equipment can be designed to support hygienic or controlled-environment production, but final cosmetic GMP, cleanroom, product-safety, and validation responsibilities depend on the complete installed process, documentation, utilities, operating procedures, and manufacturer requirements.
Frequently asked questions
The suitable method depends on viscosity, foaming, dose, temperature, particulates, and cleaning requirements. GDHP may evaluate peristaltic, piston, gravity, or other application-selected systems with representative formula trials.
One line can be designed for several formats when change parts, guides, recipes, and closure handling are planned accordingly. Final scope depends on container dimensions, tolerances, output, and changeover expectations.
A monoblock is useful when filling, closure placement, capping, and discharge benefit from a compact coordinated platform. An inline line may be preferable when the process needs more stations, accumulation, or future expansion.
Dedicated nests, pucks, guides, or format tooling can stabilize irregular bottles, tubes, jars, and pump packs through filling and capping. Representative samples should be reviewed early.
Share the formula or a representative liquid, containers, closures, target fill, output, cleaning expectations, and any labeling or coding requirements. These inputs support a practical configuration discussion.
The machine can be designed to support hygienic production, but final GMP, product-safety, and validation responsibilities depend on the complete installed process, documentation, utilities, procedures, and manufacturer requirements.
