Turnkey Filling Machine Manufacturer
Send us your product, container type, filling volume, and target output, and our engineering team will recommend the right filling solution for your production line.
- Fill liquids, pastes, oils, sauces, creams, detergents, and chemicals.
- From semi-automatic fillers to fully automatic filling lines.
- The fully automated machine can replace 4 to 5 manual workers.
- Every machine tested with your bottle and cap samples before
- One-stop solution(From Designing, Manufacturing, Installation, Training, Remote Assistance To Maintenance).
- 23+ Years Engineering Experience.
- Shipped To Over 60+ Countries.
- Delivered 48,536 Turnkey Projects.
Problems Caused by the Wrong Filling Method
When the filling method does not match your product and container, small issues turn into daily
production losses. These are the problems a suitable filling system helps you avoid.
Inaccurate Filling
Filling volume gets unstable when the method does not match your product viscosity, filling range, or container condition.
Dripping and Product Waste
Thick, sticky, oily, or foaming products need suitable nozzles and filling control to cut dripping after each fill.
Foam and Overflow
Foaming liquids may need bottom-up filling, slower filling speed, orspecial nozzle control to keep thebottle surface clean.
Clogging and Downtime
Sauces, pastes, and products withparticles need suitable valves,nozzles, and hopper design toreduce blockage during production.
A Suitable Filling Method Helps You Avoid Common Production Problems
The same product may need a different filling system depending on your filling volume, container size, speed requirement, and
production layout.
For example, 500ml edible oil bottles may run on a flow meter filling system, while 20L lubricant drums are better suited to net weight filling. Thick sauce may need piston filling with anti-drip nozzles,and sauce with particles may also require an enlarged valve and mixing hopper.
Which Filling Machine Is Right for Your Product?
Different liquids need different filling methods. The right machine for you depends on your product viscosity, foaming level, particles, filling volume, container type, bottle opening, and required output.
Send us your product details and our engineering team will help you choose a suitable filling system before you get a quotation.
| PRODUCT TYPE | COMMON FILLING CONCERNS | RECOMMENDED FILLING METHOD | DETAILS TO CONFIRM |
|---|---|---|---|
| Water, juice, vinegar, and otherthin liquids | Fast flow, foam control, liquid levelconsistency | Gravity filling, overflow filling, or flow meter filling | Filling volume, bottle size, required speed,foam level |
| Edible oil, lubricant oil, and liquid detergent | Dripping, filling accuracy, product waste | Flow meter filling, piston filing, or net weight filing | Viscosity, bottle capacity, accuracy requirement, bottle material |
| Honey, cream, lotion, shampoo,and gel | High viscosity, stringing, slow flow,product residue | Servo piston filling or pump filling with anti-drip nozzles | Viscosity, filing temperature, bottle opening, cleaning method |
| Chili sauce, jam, tomato sauce,and paste with particles | Particle blockage, uneven filing. dirtybottle mouth | Piston filling with enlarged valve, hopper, and optional mixer | Particle size, sauce thickness, filling volume, container opening |
| Foaming products such as detergent, shampoo, and disinfectant | Foam overflow, inaccurate filling, liquid on bottle surface | Bottom-up filling with adjustable filling speed | Foam level, bottle height, fillingspeed, liquid viscosity |
| Perfume, alcohol, solvent, andvolatile liquid | Evaporation, small filling volumesafety requirements | Pump filling or flow meter filling with suitable safety configuration | Flammability, filling volume, local safety requirement |
| Acid, alkall, pesticide, andchemical liquld | Corrosion, leakage, material compatibility, operator safety | Anti-corrosion fiing system with suitable contact materials | Chemical property, concentration, container type, sealing method |
| Essential oil, serum, and small-dose liquid | Small volume accuracy, clean filling, frequent product change | Peristaltic pump filling, piston filling, or pump filling | Filling range, dosing accuracy, bottle mouth size, batch size |
| 5L, 10L, 20L bottles and drums | Large flling volume, weight accuracy, container variation | Net weight filling machine or flow meter filling machine | Container size, target weight,required output, product density |
Why Partner with Us?
23+ Years of Manufacturing Excellence
End-to-End Automation
Bespoke Engineering Experts
Turnkey Partnership

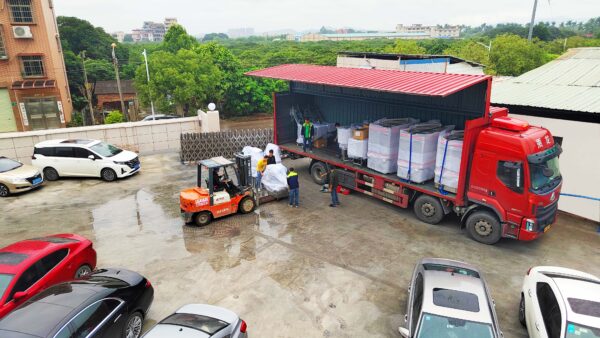

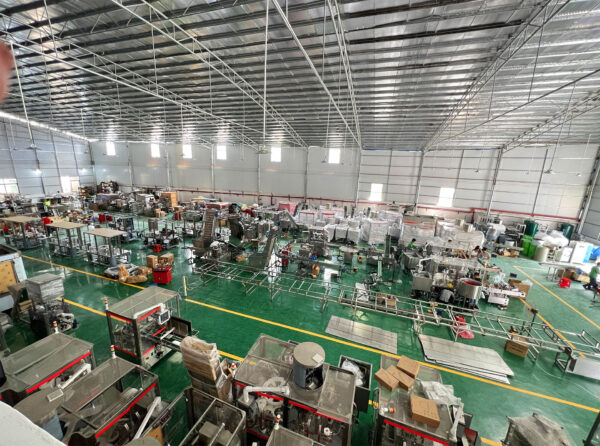

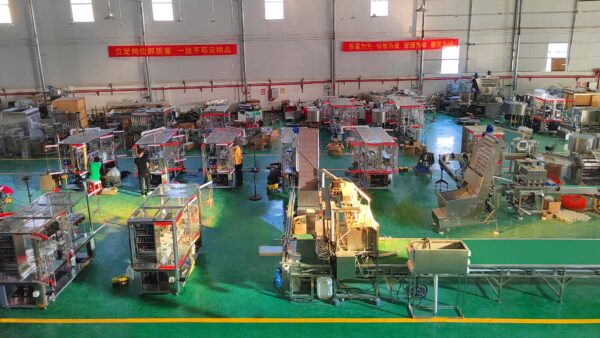

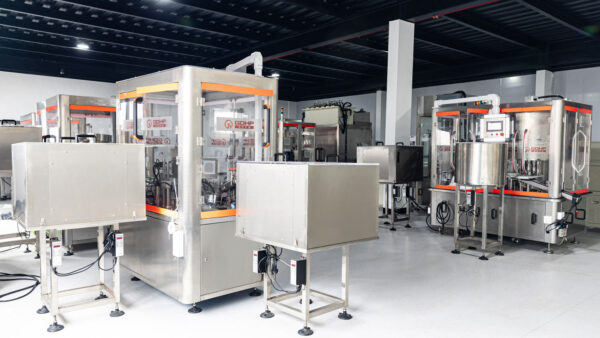

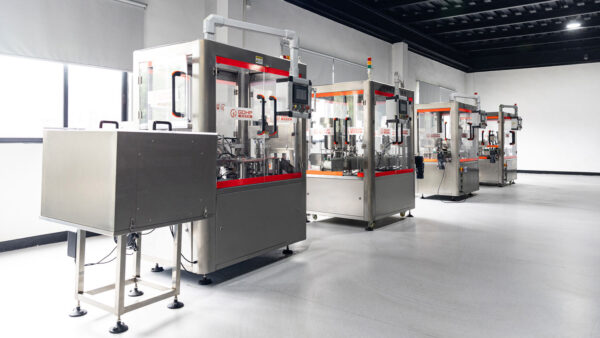

Built, Tested, and Shipped from Our Factory
From machine assembly and wiring to filling tests, inspection, packing, and shipment, every project runs through a clear production process. Review workshop photos, test videos, machine details, and packing records before shipment, so your equipment is easier to confirm before it arrives.
Designed to Reduce Common Filling Problems
A wrong filling method leads to inaccurate filling, dripping, foam, clogging, hard cleaning, slow changeover, and downtime. We check these points before recommending a machine, so the final setup runs better with your line.
Filling Accuracy
Inconsistent fill volumes can lead to product waste and customer complaints. We match the optimal filling method—whether piston, flow meter, pump, or net-weight filling—to the specific material viscosity, fill range, and container type.
Dripping After Filling
Oil, sauce, honey, cream, and detergent can drip onto the bottle. Anti-drip nozzles, suck-back, diving heads, and suitable speed keep the package clean.
Foam and Overflow
Detergent, shampoo, disinfectant, and some beverages foam at high speed. Bottom-up filling,adjustable speed, and nozzle control improve stability.
Clogging
Sauce, jam, paste, and particle products can block the valve. Piston filling with enlarged valves,hopper feeding, mixing, or heating fits thick products.
Cleaning
Food, cosmetic, and healthcare products need easy cleaning between batches. Quick-release parts, smooth contact surfaces, and suitable pipelines help.
Changeover
Different bottles, caps, labels, or volumes slow you down. Adjustable bottle guides, PLC recipe storage, and quick-change parts cut changeover time.

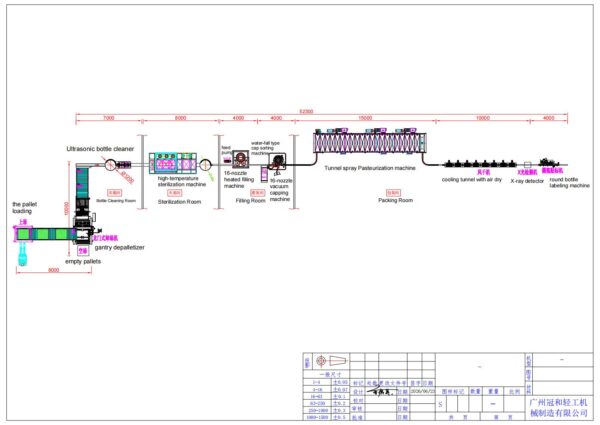

Why Plan the Whole Line Together?
Buy separate machines without line planning and problems showup at installation. Filling may outrun capping, the labeler may not fityour bottle, and conveyor height, bottle transfer, and control signalsmay need extra rework.
When the full line is planned together, every section is selected
around the same production target.
Filling Machine Configuration Options
Every project is configured around your product, filling volume, container, output, and line layout. Here are the common options for liquid, paste, oil, sauce, cosmetic, detergent, and chemical filling, with how to choose each one.
| CONFIGURATION ITEM | AVAILABLE OPTIONS | HOW TO CHOOSE |
|---|---|---|
| Filling Method | Piston, gravity, overflow, flow meter, pump, peristaltic pump, net weight | By viscosity, foam, particles, filling volume, accuracy, and product value |
| Filling Heads | 1, 2, 4, 6, 8, 10, 12 heads, or customized | More heads raise output, but depend on volume, bottle spacing, flow, and line speed |
| Filling Volume | 5-100ml, 100-1000ml, 1-5L, 5-25L, or customized | By bottle size, accuracy, product type, and whether onemachine covers multiple ranges |
| Suitable Products | Thin liquid, oil, detergent, sauce, honey, cream, loticn, gel, paste, chemical | Confirm viscosity, particles, foam, corrosiveness, andcleaning needs first |
| Container Type | Bottle, jar, can, drum, jerry can, or customized | Shape, mouth diameter, stability, height, and material affect nozzle and positioning |
| Contact Material | SS304, SS316L contact parts, food-grade hose, anti-corrosion options | Food, cosmetic, chemical, and corrosive products need different contact materials |
| Frame Material | Stainless steel frame, painted steel frame, or customized | Stainless steel suits food, cosmetic, daily chemical, andclean environments |

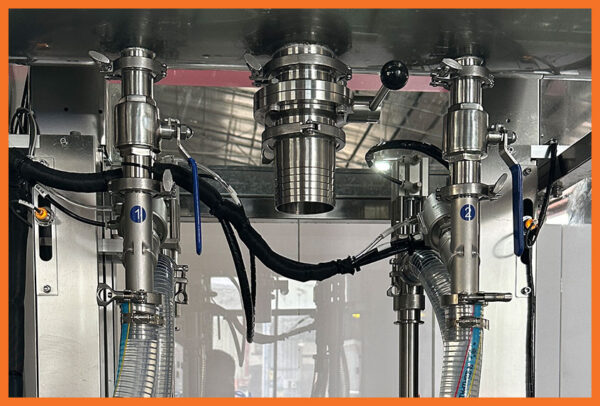

| Filling Nozzle | Standard, anti-drip, diving, enlarged, suck-back nozzle | By dripping, foam, bottle mouth size, thickness, and particles. |
| Hopper & Tank | Standard, jacketed, mixing, heated hopper, storage tank | Thick sauce, paste, cream, or particle products may needmixing or heating |
| Control System | PLC, touch screen, recipe storage, servo control, frequency control | For adjusting volume, speed, parameters, and different bottle specs |
| Conveyor System | Chain, belt, roller conveyor, or customized layout | By bottle size, weight, line speed, and connection to capping or packing |
| Capping Connection | Screw, press, pump cap, trigger cap, aluminum cap, special options | Confirm cap type, size, torque, and feeding method beforeline design |
| Labeling Connection | Round, flat, double-side, wrap-around, sleeve labeling | By label type, bottle shape, position, and appearance requirement |
| Coding Connection | Inkjet, laser, thermal transfer, carton coding | Code on bottle, label, cap, or carton by packaging process |
| Optional Inspection | Fill level, cap, label, code inspection, reject system | Add when the line needs better quality control before packing |
| Power & Voltage | Customized by destination country | Confirm voltage, frequency, plug type, and electrical standard before production |
| Automation Level | Semi-automatic, automatic, complete filing line | By output target, labor cost, space, budget, and future plan |
| Line Integration | Filling, capping, labeling, coding, case packing, palletizing, wrapping | When you need one connected line instead of separate machines |
| Customization | Bottle positioning, special nozzles, safety guards, anti-corrosion, explosion-proof | Review special product, container, layout, and local requirements before quotation |

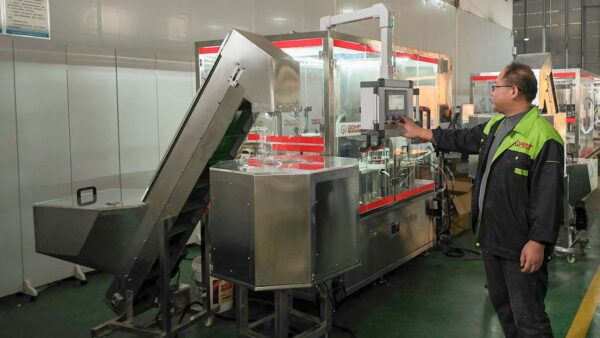

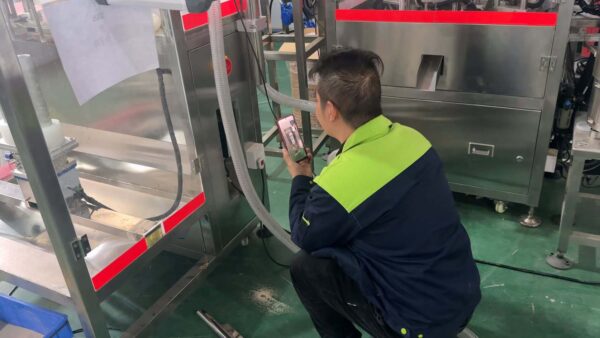

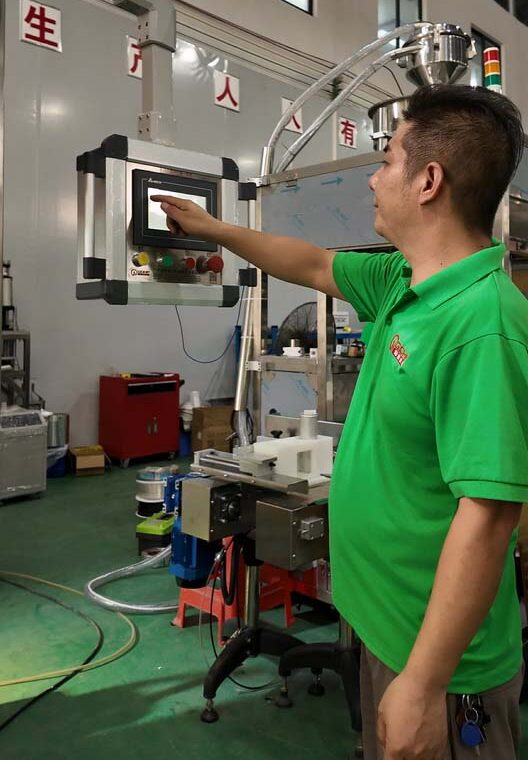

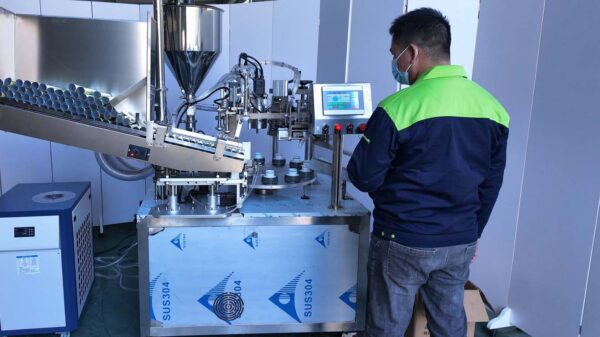

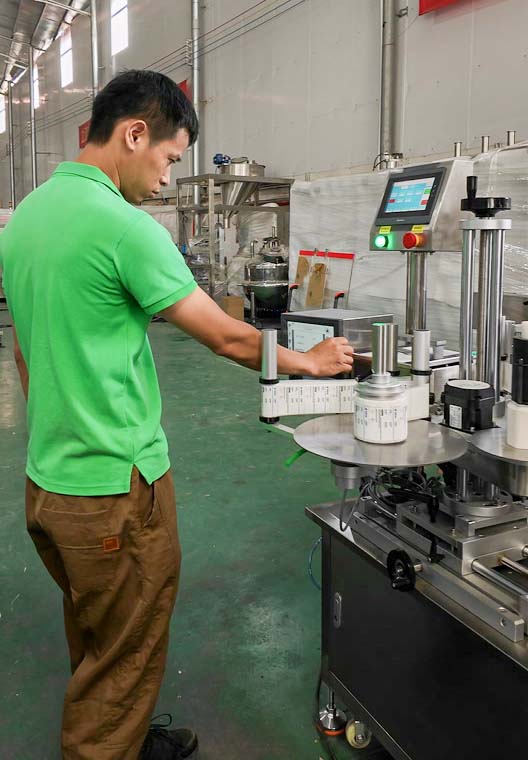

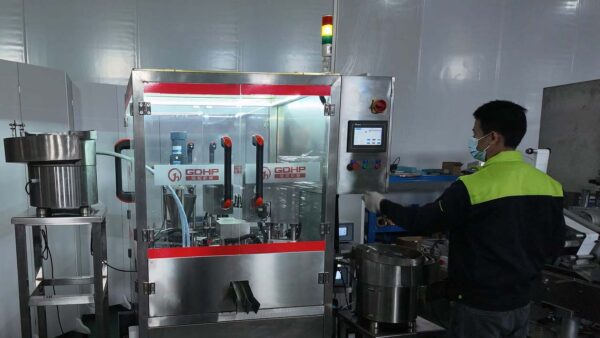

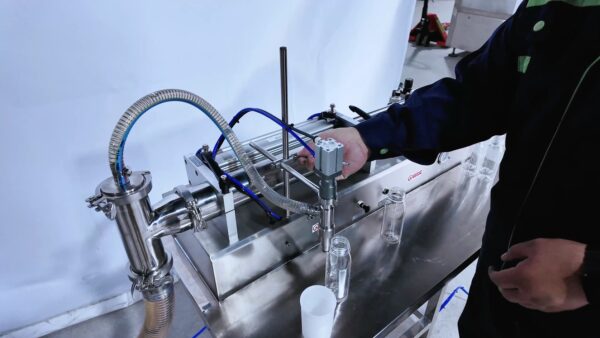

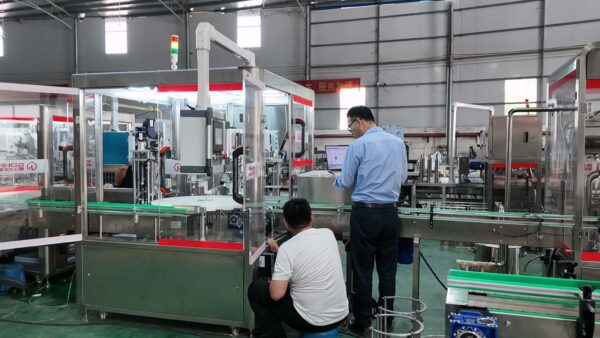

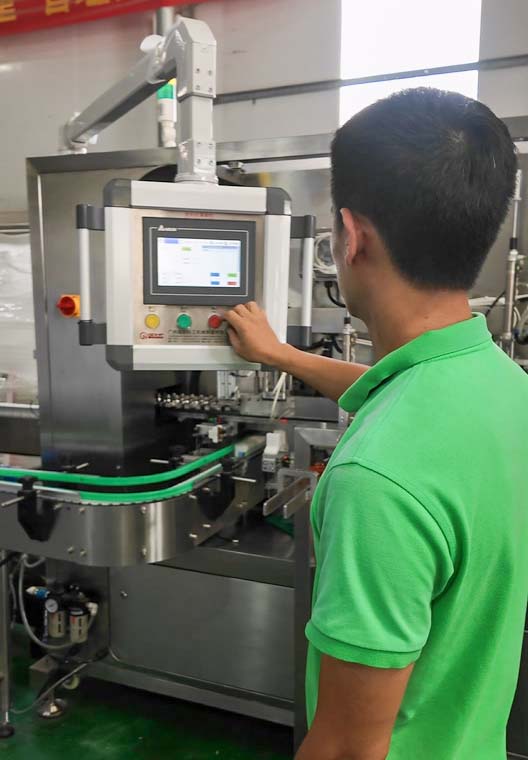

Your Machine Is Tested Before It Leaves Our Factory
Before shipment, your filling machine is tested in our factory to confirm operation, filling performance, line connection, safety functions, and packing. Test photos and videos are shared for your confirmation before it leaves.
Safety, Compliance, and Custom Options
Different products and destination markets may need differentsafety, material, and electrical setups. We review these beforequotation and confirm the suitable machine configuration for yourproject.
Confirm Before Production
Share your product type, destination country, voltage requirement, working environment, and any local compliance needs before order confirmation. Were view the configuration and confirm the options before production.
CE Configuration
CE-related electrical and safety configuration discussed by final machine design and destination market.
Voltage Customization
Voltage, frequency, plug type, and electrical components customized to your country requirements.
Product Contact Material
SS304, SS316L contact parts, food-grade hoses, or anti-corrosion
materials by product.
Safety Protection
Emergency stop, safety guards, warning labels, protective covers,
and safer operation design as required.

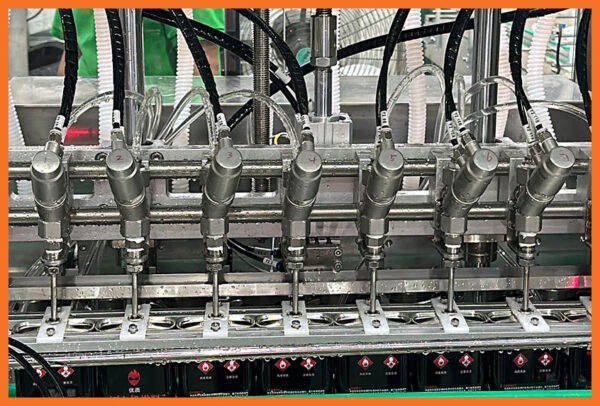

Explosion-Proof Option
For flammable or volatile products, explosion-proof electrical configuration reviewed by working environment
Language & Operation
English interface, operation manual, wiring diagram, and warning
labels for easier installation and use.
CE-Certified
After-Sales Support and Spare Parts
Overseas service is planned before shipment. We provide the documents, guidance, and spare parts you need for installation, operation, maintenance, and long-term use.
Installation Guidance
Machine layout, wiring diagrams, manuals, and setup videos help your team install and connect the machine.
Operation Training
Operation videos and parameter guidance cover filling volume, speed, nozzle control, and daily operation.
Remote Technical Support
Remote support covers setup, troubleshooting, parameter adjustment, and production questions after delivery.
Spare Parts List
A recommended spare parts list is prepared by configuration: seals, nozzles, sensors, hoses, valves, and wearing parts.
Maintenance Guidance
Daily cleaning, lubrication, inspection, and maintenance guidance help reduce downtime and keep the machine running.
Upgrade & Line Expansion
As production grows, the machine can be reviewed for future capping, labeling, coding, packing, palletizing, or wrapping.
Frequently Asked Questions
What is GDHP filling machinery manufacturer?
GDHP has been in the game since 2003. Based in Guangzhou, China, we specialize in designing and building high-quality filling and packaging machinery. Our goal has always been simple: to provide equipment that is advanced, cost-effective, and built to last.
Can GDHP handle large-scale "turnkey" projects?
Absolutely. We’re not just equipment manufacturers—we’re problem solvers. We have a deep portfolio of 48,536 case studies and extensive experience in the design, manufacturing, and installation of major projects. We can take you from the initial concept all the way to a fully operational production line.
Why should we partner with GDHP?
It comes down to experience and value. We’ve spent over 23+ years refining our tech to ensure it’s practical for real-world production. When you work with us, you’re getting top-tier engineering without the “premium” price tag, backed by two decades of industry know-how.
How does GDHP provide machine installation and staff training?
Normally, we will provide door to door service, and on-line video service.
How many days is the delivery time after deposit?
Delivery depends on the characteristics of the product, and is generally 30-60 days.
How many years of free pay warranty ?
We provide a 1-year free warranty (including on-site installation and commissioning), lifetime technical support, and overseas customers can resolve issues through remote guidance and local engineer services.
What if a part breaks down? I need support.
You need not worry about sourcing wear parts; before shipment, we will assess your machine’s wear parts and provide an extra set of them to you free of charge.
Ready to Optimize Your Filling Production Line?
To Our New Partners
Need a custom filling or packaging solution with precise technical specs?
Every message here reaches me directly. Tell me your product, container, filling volume, and output, and Icome back with machine specs and a real quote, not abrochure.
