Antigen Reagent MonoBlock Filling For Microcentrifuge Tube, PCR single tube, centrifuge tubes

Antigen Reagent MonoBlock Filling suitable for the IVD industry—specifically for the packaging of items such as centrifuge tubes, single PCR tubes, nucleic acid sampling tubes, and other related products. The machine utilizes corrosion-resistant materials to effectively address the unique properties of liquid reagents, thereby preventing leakage that could corrode critical internal circuitry. It fully complies with all applicable IVD industry and safety standards. Featuring intelligent PLC control, the system ensures precise reagent filling with an error margin of ±0.5%.

Get A Quote

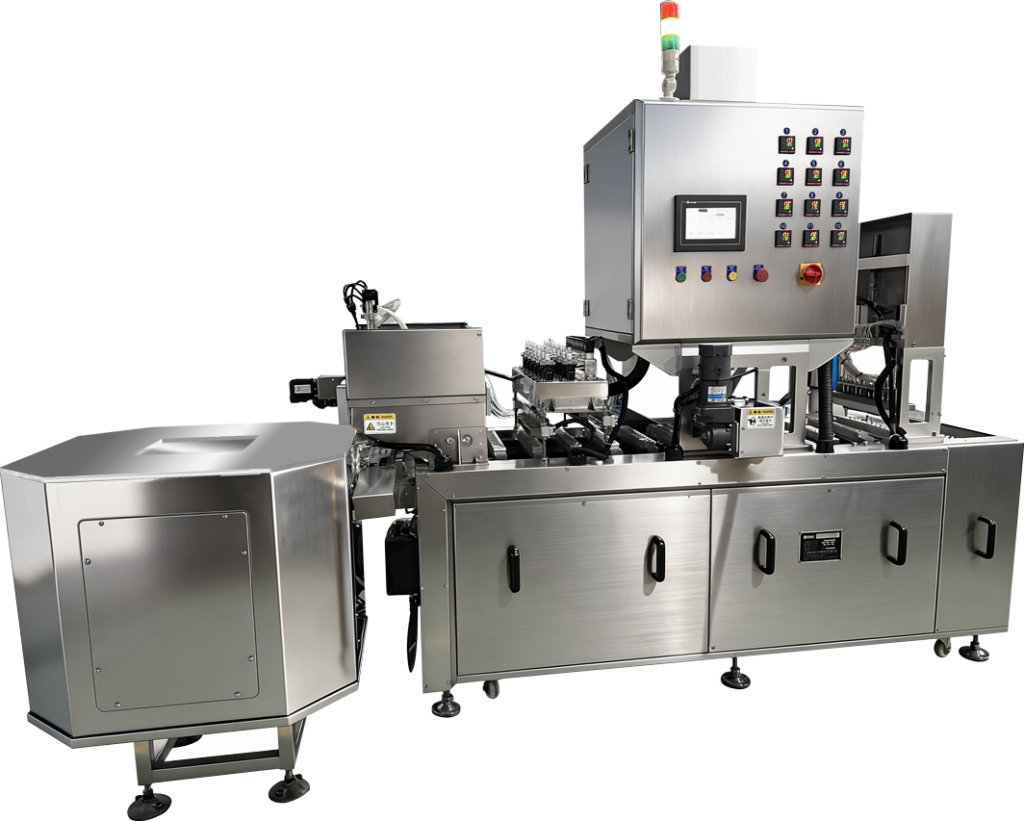

Antigen Reagent MonoBlock Filling

Direct Manufacturer from China 23+ years of industry experience

Antigen Reagent MonoBlock Filling

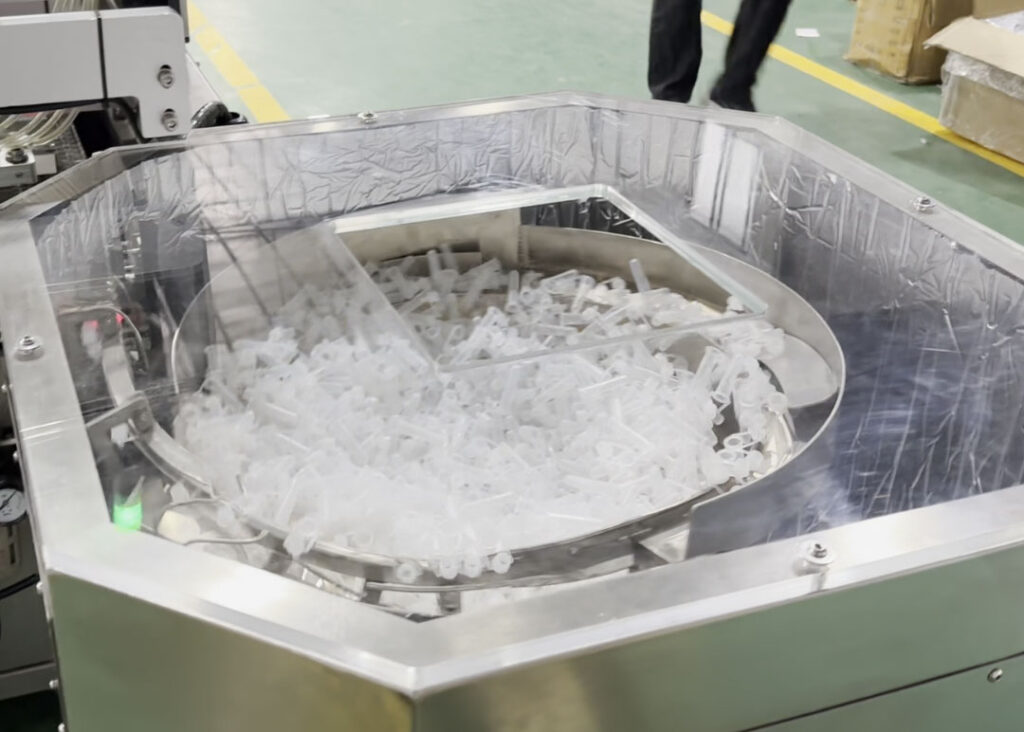

Automated Sorting of Bottles and Canned Materials

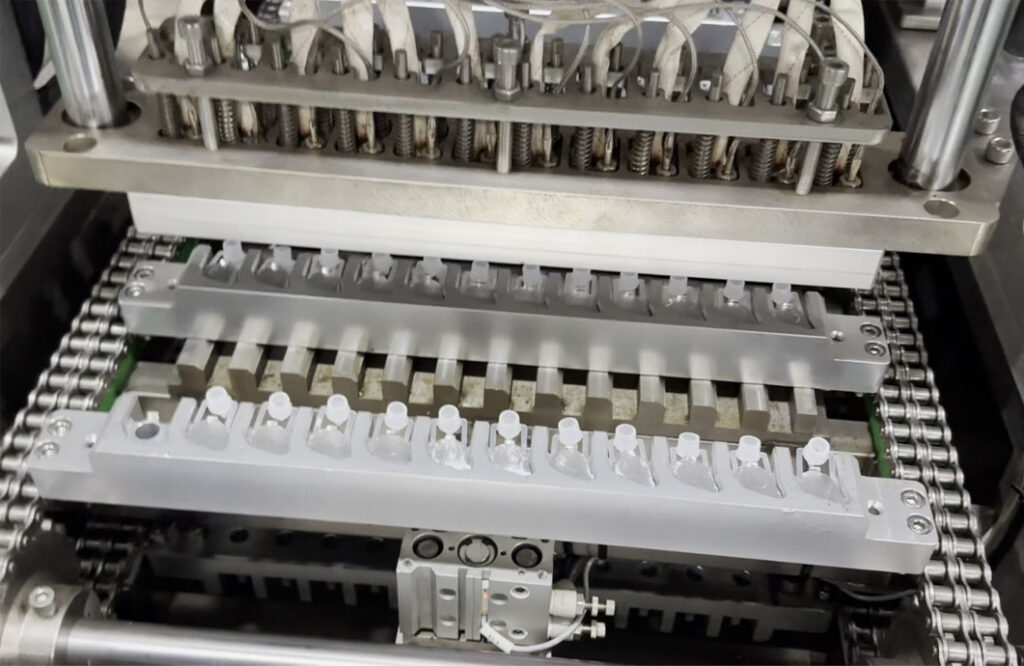

Film-Sealed for Leak -Proof Protection
PLC intelligent control

Applicable Industries

In Vitro Diagnostics (IVD)

Its core application area is the production of various rapid test kits.

Biotechnology / Pharmaceuticals

Used for filling biological reagents or trace amounts of liquid medications.

Research and Testing Institutions

Meets the small-to-medium batch, high-precision filling and packaging requirements of laboratories or third-party testing centers.

Square flat bottle

centrifuge tubes

Fruit-flavored drinks

Press-type cryovial

Skin care products

PCR single tube

Eye drops

HIV Test Tube

Essential oils

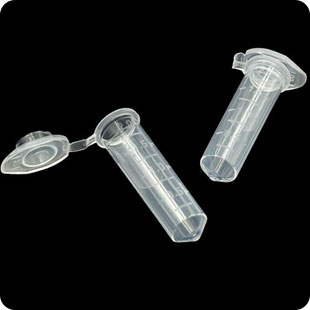

Microcentrifuge Tube

Iodine disinfectant

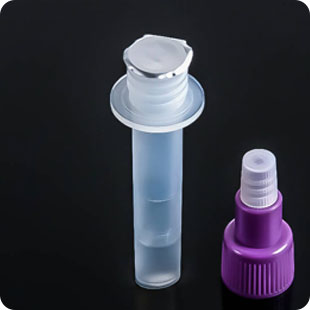

Nucleic Acid Sampling Tube

Technical parameters

type Fully Automatic Reagent Filling Line
power Approximately 2.5 kW
Air Source Approximately 0.6–0.8 MPa
Supply Voltage 3-Phase, 4-Wire, 220V/380V, 50Hz (Customizable based on customer power supply voltage)
Temperature Control Range: Within 250°C (Easy to adjust)
Air Consumption Approx. 300 L/min
Yield 4,000–5,000 bottles/hour (with single or double handles) 7,000–8,000 bottles/hour (without handles)

Why Choose Our Antigen Reagent Monoblock Filling？

Requirement: Zero-Latency Response

We steer clear of the "endless waiting" trap. Whether you need to adjust a filling volume or switch to a different tube type, we provide 24/7 online technical support— guaranteeing a response within just 5 minutes in our after- sales support group—to ensure your production line never grinds to a halt over "minor issues."

Wet-and-Dry Separation, Rust- and Corrosion-Resistant

To address the unique properties of reagent liquids, the filling zone is physically isolated from the electrical zone. Even in the event of accidental spillage, the liquid cannot penetrate and corrode the core circuitry; this extends the equipment's service life and eliminates "inexplicable" short- circuit alarms.

About Accessories

The model numbers, brands, and procurement details for all consumable parts are delivered to you together with the machine. This ensures that you can easily source and replace these parts yourself. We do not rely on selling spare parts for profit, nor are we concerned if you choose to purchase them independently. Should any issues arise, please feel free to contact us at any time; we provide comprehensive, one-stop service support.

Others' approach: Ship the machine, leaving behind a single instruction: "Adjust it yourself once you get back."

Our Approach: You ship your tubes, caps, and membranes to our factory, where we complete all machine parameter adjustments prior to shipment. Once the machine is delivered to you, simply power it on—it is ready for immediate use with no further parameter adjustments required.

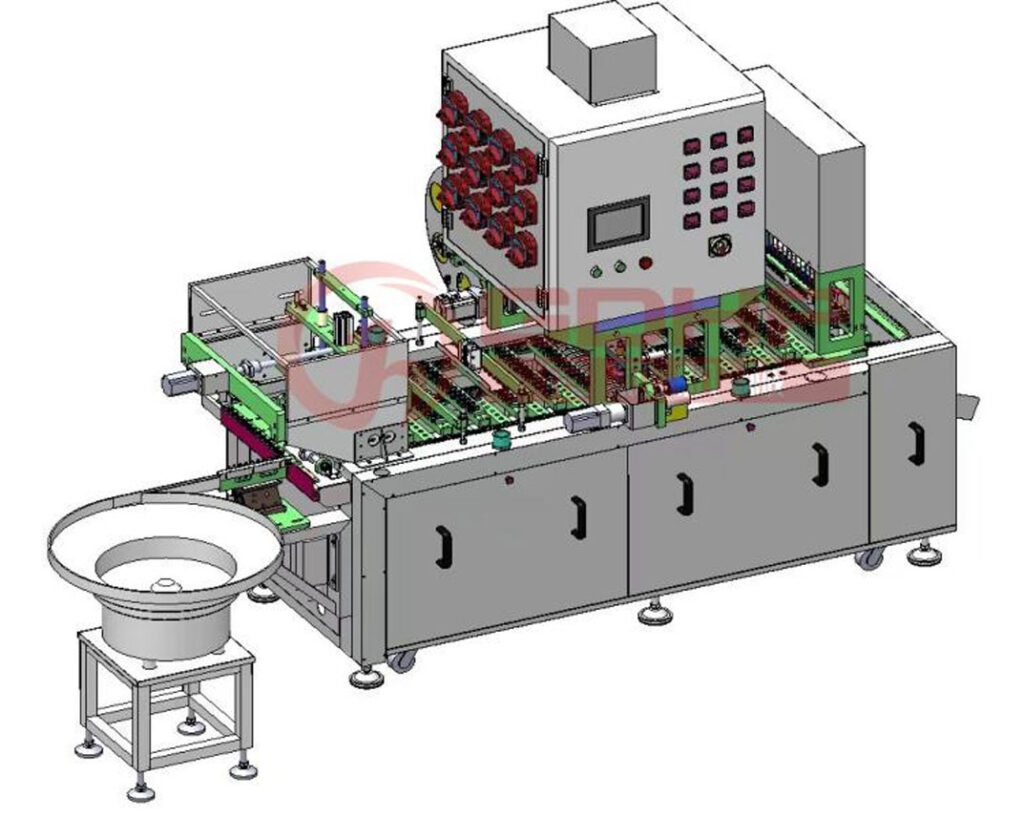

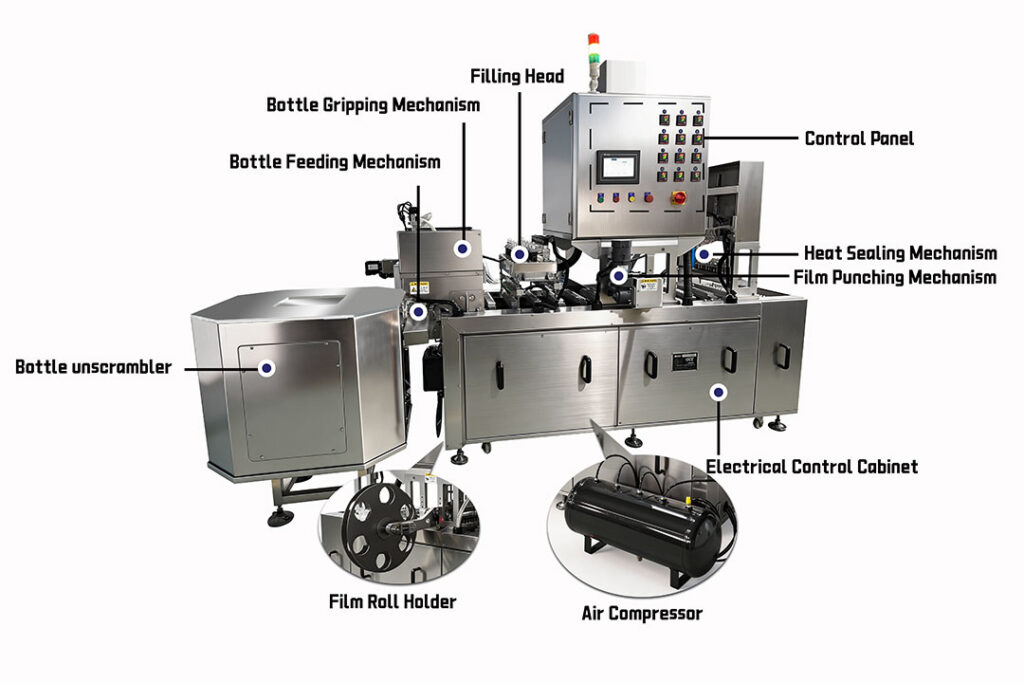

Antigen Reagent MonoBlock Filling Schematic Diagram

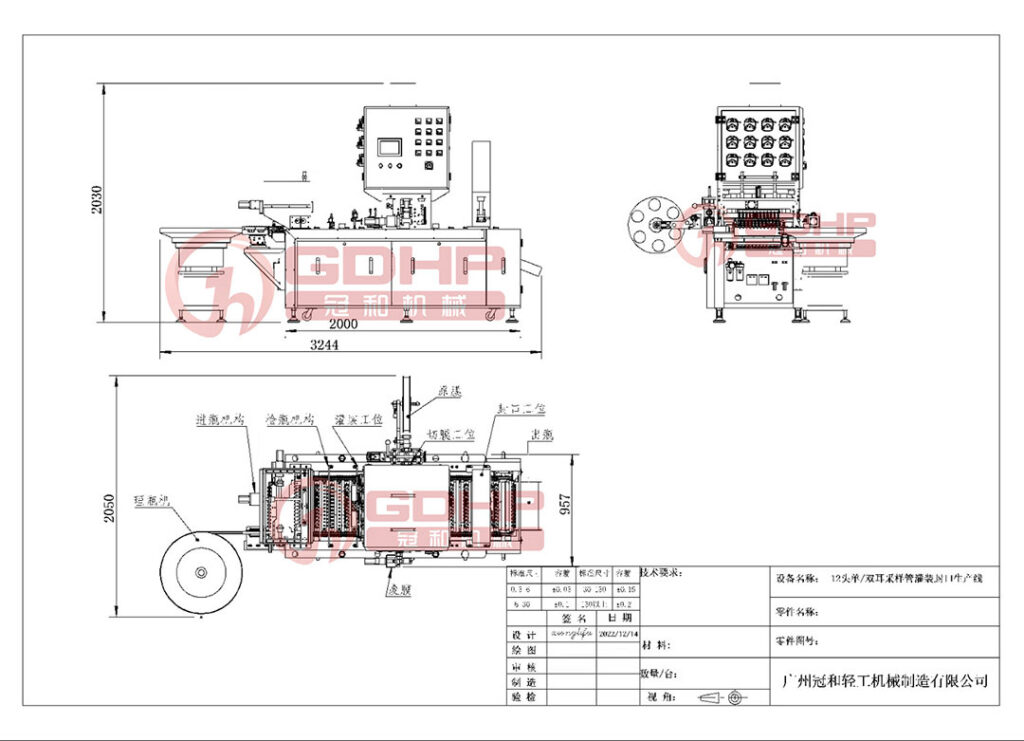

Irregularly Shaped Bottle Filling and Capping Integrated Machine Schematic Diagram

After-Sales Service Process

To provide our clients with comprehensive and attentive service—thereby relieving them of any potential concerns—our company has established a robust after-sales service system and implemented effective support measures. We have also launched a dedicated after-sales service hotline to provide users with satisfactory solutions and technical assistance. Furthermore, our After-Sales Service Department conducts regular follow-up visits to clients. Our company currently maintains a strong after-sales support team comprising over ten professional service engineers, ensuring that your post-purchase needs are fully safeguarded. We hereby make the following commitments regarding our repair services and pledge to provide such services in strict accordance with the terms outlined below.

Antigen Reagent MonoBlock Filling FAQ

The error rate is within ±0.5%, which fully meets the precision requirements for reagent filling.

Yes, it supports multiple sizes. Furthermore, it utilizes a modular mold system for changing filling specifications, minimizing downtime; the production line can be fully reconfigured in just 30 minutes.

The machine includes several “smart” sensors and safety protocols to ensure smooth operation:

  • No Bottle, No Dispense: The system will not discharge reagents if a bottle is not detected.

  • Automatic Stop: The machine triggers an automatic stop if the bottle supply is empty.

  • Fault Protection: Built-in fault shutdown protection immediately halts operation if an error occurs, preventing damage to the hardware.

GDHP’s Antigen Reagent MonoBlock Filling machine employs intelligent PLC control to precisely regulate the liquid filling process.

Typically, it can reach a capacity of 300 liters per minute; however, the capacity can also be custom-designed to meet your specific requirements.
