Water-Cooled Electromagnetic Induction Aluminum Foil Sealing Machine For Yogurt, Candy, Dried fruit, Pet food

The Water-Cooled Electromagnetic Induction Aluminum Foil Sealing Machine featuring an advanced water-cooling system for superior thermal stability. By utilizing non-contact induction heating, it hermetically seals containers to preserve freshness, prevent oxidation, and extend shelf life.This versatile machine is ideal for the food, beverage, agricultural chemical, and healthcare industries, providing a tamper-evident barrier for products ranging from yogurt and candy jars to pet food and health supplements.

Get A Quote

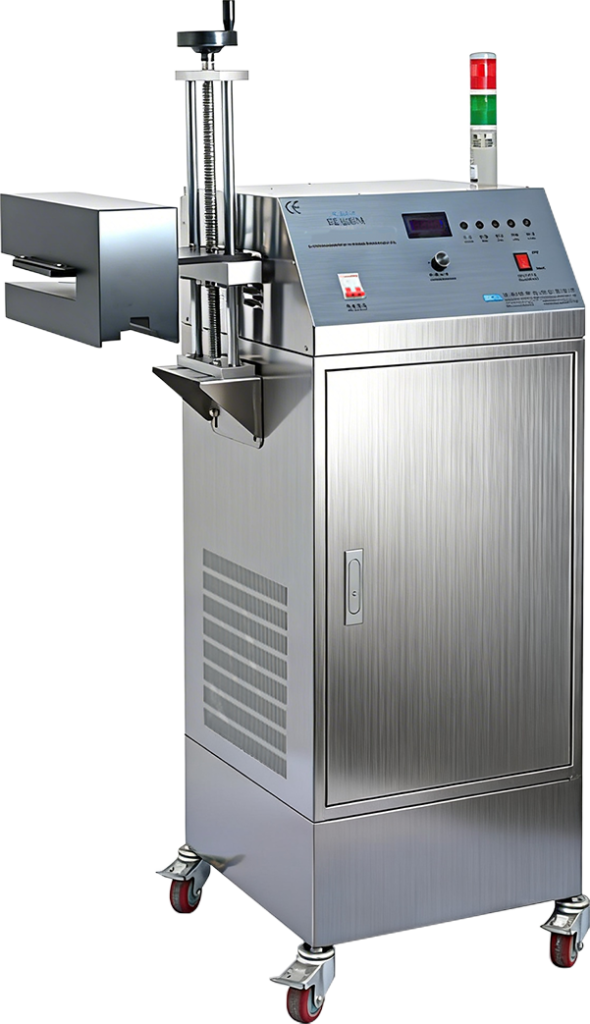

Water-Cooled Electromagnetic Induction Aluminum Foil Sealing Machine

Direct Manufacturer from China 23+ years of industry experience

Irregularly Shaped Bottle Filling and Capping Machine
Adaptable to various sealing shapes
Forced water cooling
CPU modular control

Applicable Industries

Agricultural chemicals

Pesticides and fertilizers: moisture-proof and anti-volatile properties

food industry

Extend shelf life, prevent leakage, and provide antioxidant protection for condiments, honey, jams, beverages, and cooking oils.

Daily chemical industry

Leak prevention and product enhancement for shampoo, shower gel, skincare products, and cosmetics.

Beverage industry

Juice, tea, and mineral water: Sealed for freshness and anti- counterfeiting.

Square flat bottle

Yogurt jar

Fruit-flavored drinks

Candy jar

Skin care products

Dried fruit products

Eye drops

Dried fruit products

Essential oils

Pet food

Iodine disinfectant

health products

Water-Cooled Electromagnetic Induction Aluminum Foil Sealing Machine Technical parameters

Model GH-6000A
Suitable bottle mouth diameter: 20mm-100mm (Customizable)
Adjustable travel (height off the ground) of the sealing valve: 850mm-1430mm (customizable)
Linear velocity can be satisfied: 0-25m/min
Sealing speed 0-300 bottles/min
Maximum power 4000W
power supply 220V，50/60HZ
Overall machine dimensions (L*W*H): 500mm*500mm*1090mm
machine net weight 75kg
packaged size 1170mm*610mm*570mm 920mm*410mm*270mm
package weight 95KG

Why Choose Us

Ordinary sealing machine

Air-cooled heat dissipation; gets hot to the touch after one hour of continuous operation.

If there is any residue at the bottle opening, it won’t seal properly.

No protection, you only find out when it breaks.

The sensor head is fixed; if you change the bottle type, you have to replace the machine.

Our sealing machine

Water cooling ensures no overheating even after 24 hours of continuous operation.

The bottle opening is perfectly sealed even when there is liquid inside.

Triple alarm for water shortage, overheating, and overpressure, preventing potential hazards.

The sensor head is adjustable, and it can handle bottles ranging from 30 to 490mm in size.

Water-Cooled Electromagnetic Induction Aluminum Foil Sealing Machine FAQ

This machine is highly versatile and designed for heavy-duty industrial use. It is ideal for:Agricultural Chemicals, Food Industry, Daily Chemical Industry, Beverage Industry.

Absolutely. Unlike standard air-cooled models that may require breaks to cool down, this machine utilizes an advanced industrial water-cooling system. This ensures that the induction head remains at an optimal temperature even during 24 hours of non-stop operation, making it perfect for high-volume production lines.

No. One of the standout features of this electromagnetic induction technology is its ability to create a perfect, hermetic seal even when there is liquid or moisture around the bottle opening. This ensures leak-proof packaging for beverages and chemical liquids.

To protect your investment and ensure operator safety, the machine is equipped with a Triple Alarm System that triggers in the following scenarios:

  • Water Shortage: Prevents damage to the induction coil if the cooling flow is interrupted.

  • Overheating: Automatically alerts the user if internal temperatures exceed safety limits.

  • Overpressure: Protects the electrical components from voltage spikes or instability.

The machine is designed for maximum flexibility. The sensor head is fully adjustable, allowing it to accommodate a wide variety of container heights and shapes. It can effectively process bottles ranging from 30mm to 490mm in size.
