Fully Automatic High-speed Case Erector For Food & Beverage, Chemical, Pharmaceutical, Daily Chemical And IVd Industry

Boost productivity with our fully automatic high-speed case erector. Fast, reliable, and seamless box forming for high-volume industrial packaging lines.

Get A Quote

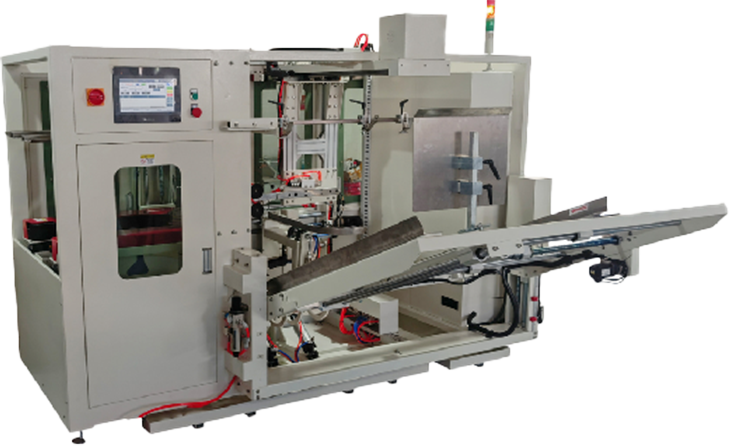

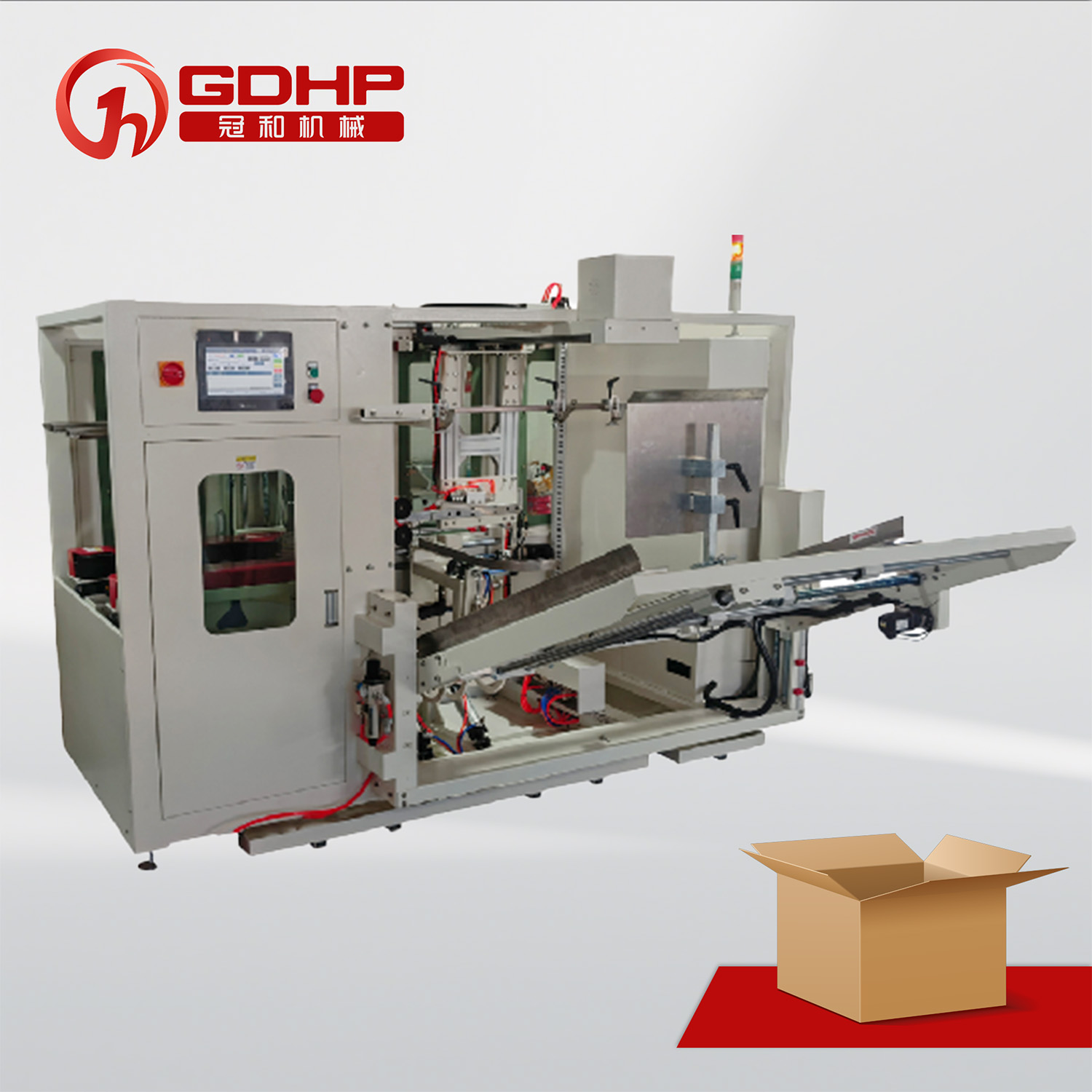

Fully Automatic High-speed Case Erector

Direct Manufacturer from China 23+ years of industry experience

Irregularly Shaped Bottle Filling and Capping Machine

Horizontal forming: fast, precise, and stable.

Unboxing speed: 30 boxes/minute
Controlling adaptive carton size
Simple interface, easy operation
Alarm devices for safe production
Used in conjunction with production lines

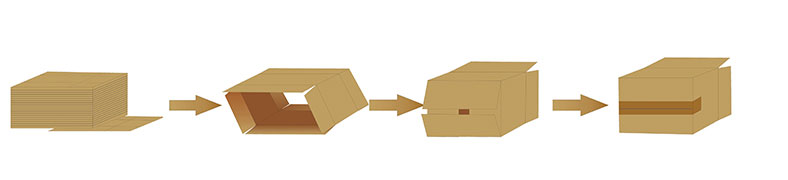

Fully Automatic High-speed Case Erector Unboxing process

PLC + Human Machine Interface Control
Automatic push-in
Automatic push-in
Automatic push-in
Automatic push-in

Fully Automatic High-speed Case Erector Application Cases

Used in the food, beverage, confectionery, stationery, hardware tools, daily necessities, chemical products and other industries.

Humanized details

Easy to learn and operate

Double feed mechanism

Compared to traditional pin insertion methods, cardboard boxes can handle a greater weight.

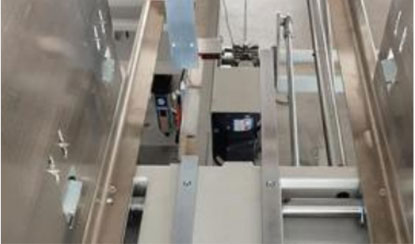

Folding mechanism

Featuring a double-linkage, double- swing arm design and a front and rear flap folding mechanism, the carton is formed quickly and with ease.

high-performance motor

Selected, stable, powerful, and durable motors enable uninterrupted, fast, and efficient operation, with more stable operation upon unpacking.

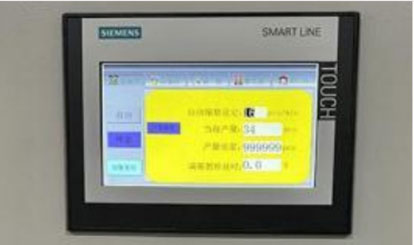

Human-machine interface

Compared to traditional pin insertion methods, cardboard boxes can handle a greater weight.

Fully Automatic High-speed Case Erector FAQ

We utilize a specialized mechanical squaring device and a dual-chain drive system. This ensures that every box is held firmly at 90-degree angles during the bottom-taping, preventing jams in downstream equipment like case packers or palletizers.

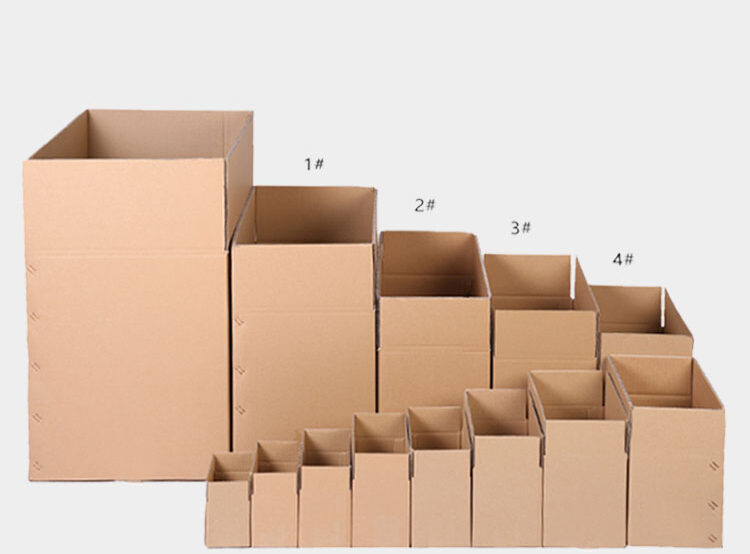

The system is highly flexible. It typically handles:

  • Minimum: 200mm (L) x 150mm (W) x 100mm (H)
  • Maximum: 600mm (L) x 400mm (W) x 500mm (H)
    (Custom oversized versions are available upon request.)

Yes, compared to the traditional needle insertion method, our dual-feed mechanism allows the cardboard box to withstand greater weight.

The machine is equipped with low-material sensors. It will trigger a visual/audible alarm on the signal tower to alert the operator before the machine stops, ensuring zero “dry runs.”

Absolutely. We use standardized components (like SMC/Airtac pneumatics and Siemens/Schneider electronics). The open-frame design allows for easy cleaning and clear access to all moving parts for monthly lubrication and inspection.
