GDHP Capsule Filling Machines - GMP Compliant • CE Certified • 23+ Years Experience
Our capsule filler is strictly GMP-compliant and utilizes a precise 3D adjustment mechanism to keep filling errors within ±3%, while achieving a capsule loading success rate of up to 99%. Suitable for sizes 000#–5#
Choose us to gain a competitive advantage.
Strict Compliance & Hygienic Design
Constructed from high-quality 304/316L stainless steel with a seamless structure and CIP/SIP interfaces, the machine strictly complies with GMP, FDA, and EU GMP standards.
Pharmaceutical Capsule Machine Solutions
Designed for pharmaceutical and nutraceutical manufacturers, our turnkey solutions deliver reliable performance, customizable output, and worldwide technical support.
Smart Automation & Traceability
Optional Siemens and other advanced PLC and HMI controls supporting electronic batch records, audit trails, and seamless integration with MES/SCADA systems for data integrity.
Our Capsule Filling Machines
Powder & Granules Capsule Filling Machine
This fully automatic capsule filling machine offers deep compatibility, including powders, granules. The equipment is strictly GMP-compliant and utilizes a precise 3D adjustment mechanism to keep filling errors within ±3%, while achieving a capsule loading success rate of up to 99%.
Application: Powder & Granules Capsule
| Equipement Model | GH-NJP-200C/400C | GH-NJP-800C | GH-NJP-1200C | GH-NJP-2500C |
|---|---|---|---|---|
| Production Capacity | 12000/24000 pcs/H | 48000 pcs/H | 72000 pcs/H | 150000 pcs/H |
| Number of holes | 2/3 | 6 | 9 | 18 |
| Quantity Accuracy | ±3% | ±3% | ±3% | ±3% |
| Vacuum Machine | -0.04-0.08mpa | -0.04-0.08mpa | -0.04-0.08mpa | -0.04-0.08mpa |
| Capsule model | 000#-5# | 000#-5# | 000#-5# | 000#-5# |
| Power | 380V 3kw | 380V 5kw | 380V 5.5kw | 380V 8kw |
| Equipment weight | 600kg | 900kg | 1100kg | 1500kg |

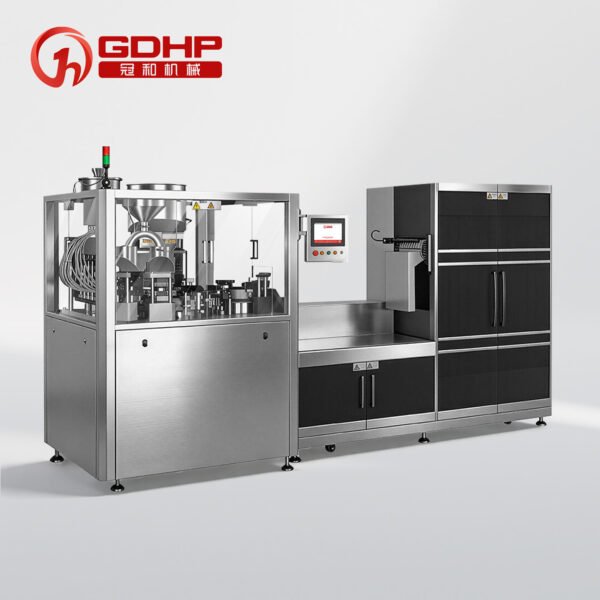

Fully Automatic Liquid and Micro Capsule Filling Machine
The equipment adopts a human-machine interface control system, which automatically alarms for missing capsules and materials. Ceramic pump and servo motor liquid filling system, controlling the difference in filling volume at around+2%,ensuring precise dosage. The sealing mechanism adopts servo motor lifting and fine-tuning up and down to achieve the best sealing effect of the liquid layer. The sealed liquid tank is designed with a sealed structure and equipped with a heating and insulation system

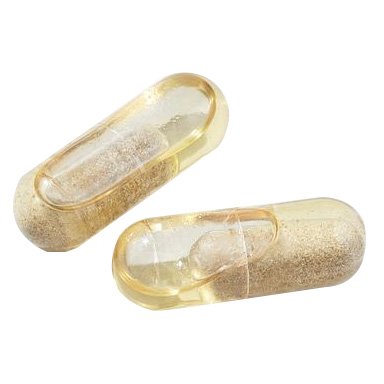

Application: Liquid Capsule, Microcapsule
| Equipement Model | GH-NYF-300 | GH-NYF-1000 |
|---|---|---|
| Production Capacity | 18000 pcs/H | 60000 pcs/H |
| Filler | Solution, suspension, micro lotion | Solution, suspension, micro lotion |
| Number of mold holes | 6 | 16 |
| Capsule model | 00-4# gelatin, plant capsules | 00-4# gelatin, plant capsules |
| Environment | Room temperature around 20° C, humidity 40% -55% | Room temperature around 20° C, humidity 40% -55% |
| Power | 220V/380V 9kw | 220V/380V 12kw |
| Compressed air | ≤0.6mpa | ≤0.6mpa |
Optional auxiliary machines
Capsule Filling Machine Bubble Cover Packaging Machine
Vacuum encapsulated shell, no need for manual intervention, no material alarm. After polishing the dust outside the capsule shell, it directly enters the packaging machine bin. The packaging machine is equipped with a visual inspection system that automatically eliminates unqualified capsule versions, and the finished products are stored in the qualified area

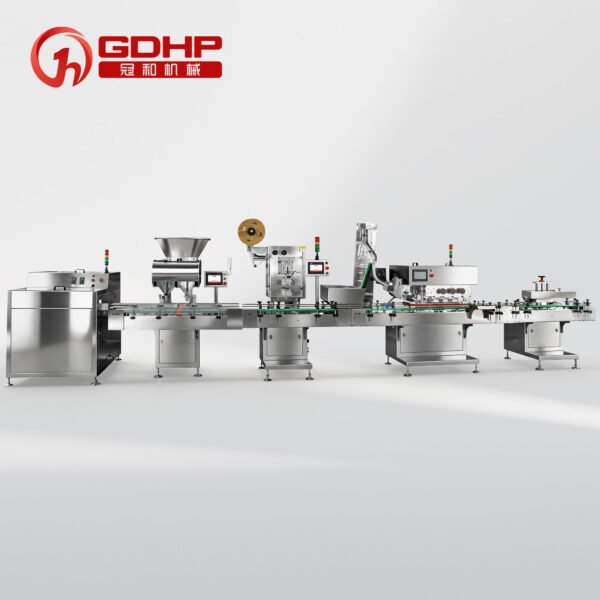

Fully automatic Pill Counting Production Line
10-9999 capsules can be adjusted freely, compatible with tablets, capsules, soft capsules and other products. The material backend runs automatically, and if there is a malfunction in the frontend, it will automatically pause. The overall design is simple, convenient for placement in various venues, and the adjustment is simple and reasonable
Blister Packaging Machine
Automatic feeding device for drugs, capsules and other products, high-speed synchronous forming filling heat sealing process. Support multiple bubble cap sizes and materials (such as PVC/PVDC/aluminum-plastic composite film).
Crusher
Mainly suitable for crushing and processing low to medium hardness materials in pharmaceuticals, with a fineness between 10-120 mesh adjusted by changing the sieve
Granulator
The blade screen combination structure can quickly crush agglomerated materials, and the particleuniformity after granulation reaches over 95%; Support free replacement of mesh aperture(0.3-10mm), adaptable to various particle size requirements, fully enclosed stainless steelchamber+mirror polishing treatment, easy to clean and in compliance with GMP standards; Variablefrequency speed control, low operating noise, suitable for continuous production needs.
Intelligent Drying Machine
The hot air circulation oven is a universal drying product, named CT serieshot air circulation oven. It has a low-noise and high-temperature resistantaxial flow fan, equipped with an automatic temperature control system. Theentire circulation system is fully enclosed, and the average thermalefficiency of the oven can reach 70%.
Trough Mixer
The trough mixer adopts a U-shaped stainless steel trough body and a dual axis bladestructure design. Through the forward and reverse rotation of the blade, it generatesshear, convection, and extrusion effects on the material, achieving uniform dispersionand kneading of high viscosity paste, powder liquid mixture, and granular materials.
Upward Rotating Screening Machine
The core of the upward rotating screening machine adopts the principle of bottom-up spiralvibration conveying. By adjusting the excitation force of the vibration motor and theinclination angle of the screening plate, it drives solid preparations such as tablets andcapsules to spiral up from the bottom of the equipment to the discharge port, synchronouslycompleting particle classification, fragment screening, and surface impurity cleaning
Pneumatic Vacuum Feeding
Pneumatic vacuum feeder uses compressed air to generate high vacuum through a vacuumgenerator to transport materials, without the need for mechanical vacuum pumps. It has theadvantages of simple structure, small volume, maintenance free, low noise, easy control, eliminationof material static electricity, and compliance with GMP requirements.
