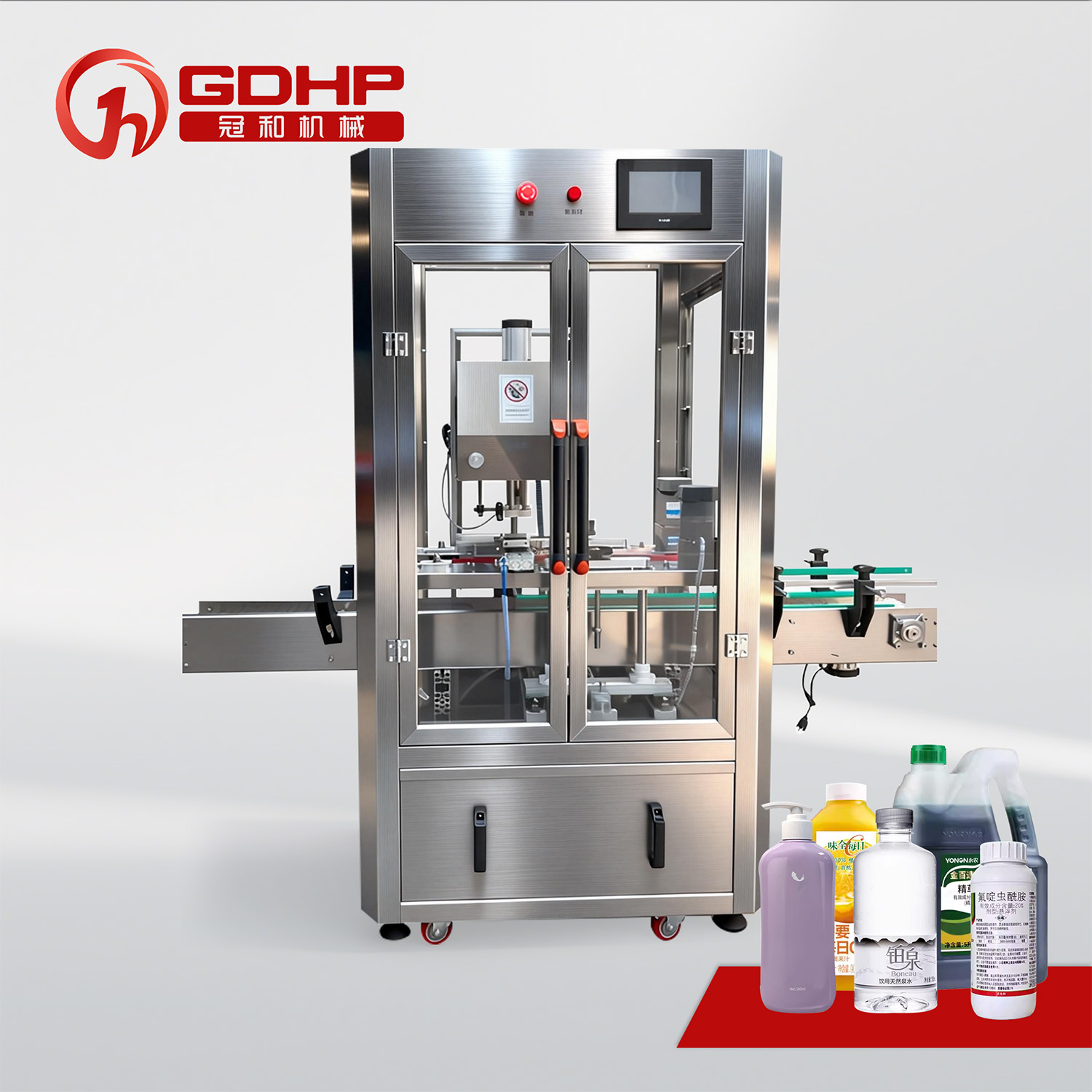

High-Performance, Precision-Engineered Servo Capping Machine (with frame)

The Servo Capping Machine (with Frame) is a high-performance, precision-engineered solution designed for versatile liquid packaging. Utilizing advanced servo motor technology, it delivers exceptional torque control and consistent sealing accuracy, making it ideal for a wide range of products—from household essentials like laundry detergent, dish soap, and body wash to automotive fluids like engine oil and antifreeze. It is equally proficient in food-grade applications such as cooking oil, juice. Furthermore highly sensitive materials, such as pharmaceuticals, reagents, etc.

Get A Quote

Servo capping machine (with frame)

Direct Manufacturer from China 23+ years of industry experience

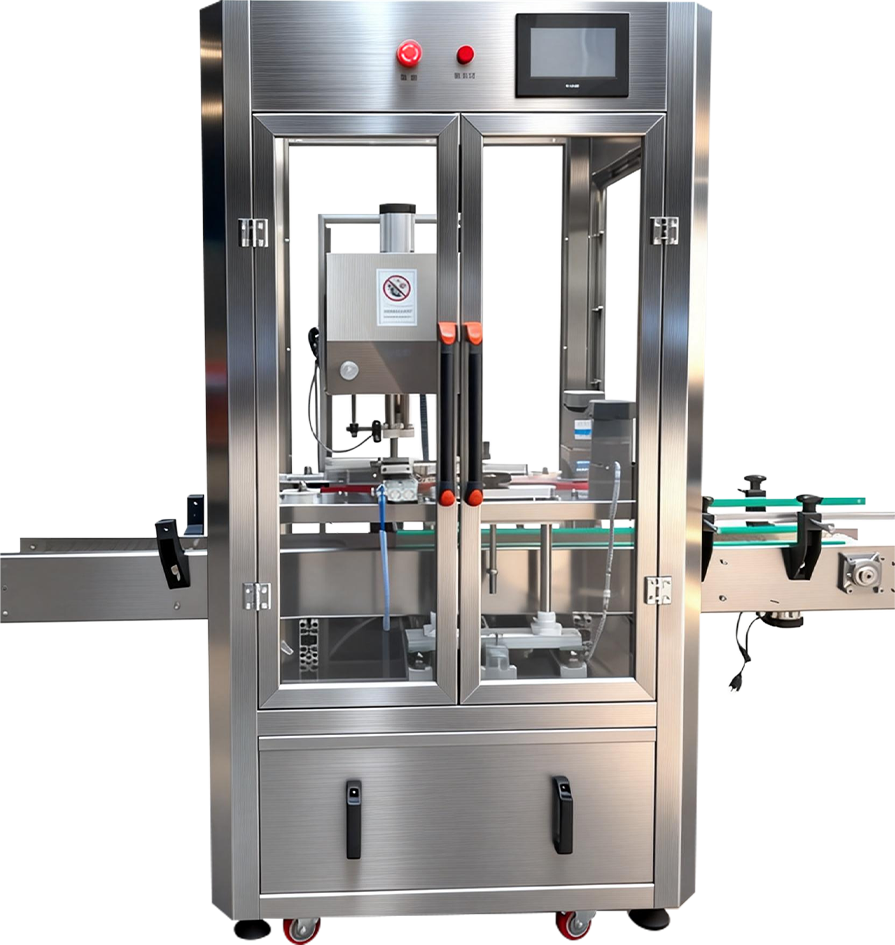

Irregularly Shaped Bottle Filling and Capping Machine
High-precision servo torque control
Precise Detection of Bottle Cap Status
PLC intelligent control

Applicable Industries

pharmaceutical industry

It requires extremely high precision and cleanliness, complying with GMP standards. The core objective is to ensure the safe sealing of the medicines and to record and trace 100% of the capping torque data for each bottle, achieving end-to-end quality monitoring.

Food and Beverage

The pursuit of high-speed production requires excellent cap sealing to prevent leakage, while also ensuring a high yield rate.

Daily chemical industry

The product range is diverse, and the bottle cap types are complex (such as pump heads, spray heads, flip caps, etc.). The machine needs precise torque control to ensure a tight fit while preventing overtightening that could damage the delicate bottle caps or bottles.

Chemical Industry

This machine typically handles large bottles and needs to deal with corrosive chemicals. It must be stable and reliable, effectively solving the common "slippage" problem of plastic bottle caps, ensuring production safety and sealing performance.

Square flat bottle

laundry detergent

Fruit-flavored drinks

engine oil

Skin care products

juice

Eye drops

cooking oil

Essential oils

body wash

Iodine disinfectant

antifreeze

Iodine disinfectant

Dish soap

Iodine disinfectant

Metal bottle cap

Iodine disinfectant

Antibacterial detergent

Technical parameters

frame 304 stainless steel
machine feet 304 stainless steel
Product Model GHXG-4
Rated voltage AC220V 50/60Hz
Gas source 0.4-0.6MPa
Screw cap range Φ18-65mm (custom sizes available upon request)
Capping speed 50-80 bottles/minute (depending on the situation)
Adaptable bottle height 70-330mm (custom sizes available)
Bottle cap type Round caps, pump head caps, and duckbill caps made of plastic or metal, etc.
Total weight Around 90kg
External dimensions 760X900X1450mm

Why Choose Us

Precise servo torque control ensures stable and reliable capping quality.

Utilizing a high-precision servo motor drive, the system achieves a torque control accuracy of up to ±0.1 N·m, allowing for flexible adjustment of torque parameters to suit various cap types. Whether handling child-resistant caps or precision pump heads, it delivers a flawless sealing result—ensuring the bottle body remains undamaged while the cap remains securely fastened.

High yield rates ensure stable and efficient large-scale production.

The equipment is outfitted with an intelligent cap- detection system capable of real-time monitoring for the presence of caps, thereby effectively preventing common issues such as missing or misaligned caps. The entire machine features high-quality motors and a precision-engineered structure, ensuring smooth and reliable operation. It supports continuous 24-hour operation, guaranteeing a consistently high yield rate of over 99.5% during large-scale production runs—thus safeguarding the efficiency and success of your mass manufacturing operations.

Changeover takes only 15 minutes, making flexible manufacturing "one step ahead".

In response to the trend of multi-variety, small-batch production, we have optimized the quick-change structure. Bottle and cap shapes can be quickly adjusted without tools, reducing changeover time to less than 15 minutes, allowing the production line to be "multi-functional" and flexibly respond to market changes.

The entire machine complies with GMP standards and has passed stringent pharmaceutical-grade verification.

The machine body is made of 304 stainless steel with a seamless design, making it easy to clean and disinfect. All electrical components are selected from top international brands, and the equipment meets the requirements of Good Manufacturing Practices (GMP) for pharmaceuticals. It has been successfully applied by many well-known pharmaceutical and health product companies.

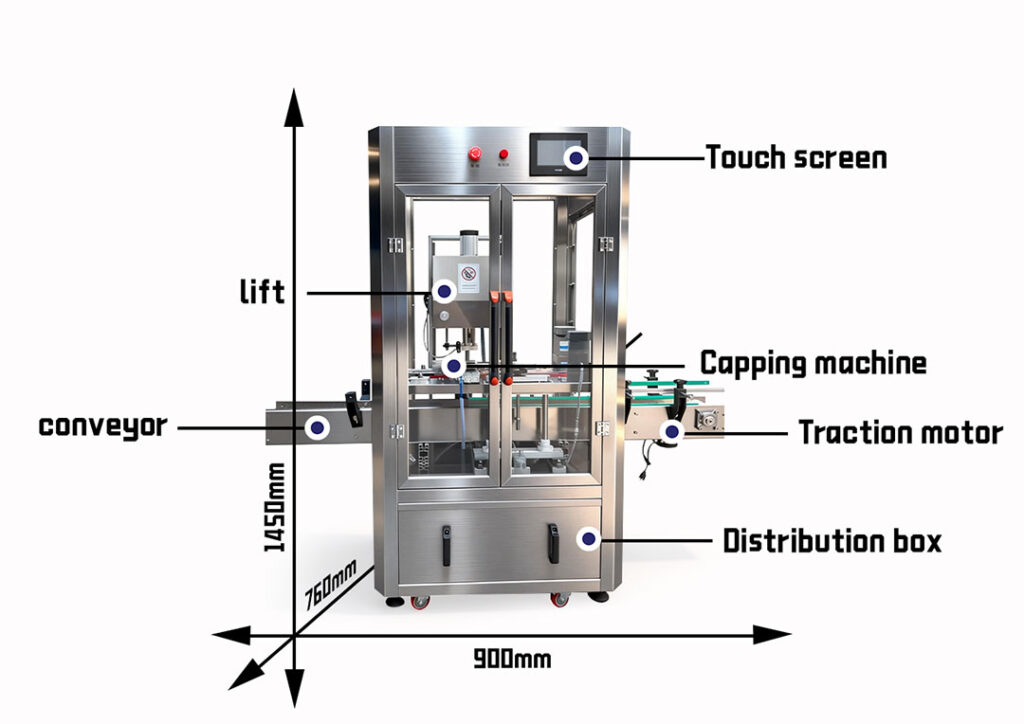

Irregularly Shaped Bottle Filling and Capping Integrated Machine Schematic Diagram

Irregularly Shaped Bottle Filling and Capping Integrated Machine Schematic Diagram

Servo capping machine Detailed display

From pharmaceutical-grade GMP standards to high-speed production lines in the daily chemical industry, we provide the most reliable capping solutions for your bottled products.

Servo capping machine FAQ

When handling corrosive substances—such as disinfectants and chemical agents—or highly sensitive materials—such as pharmaceuticals and reagents—it is critical to ensure that the production process remains strictly isolated from the external environment. To this end, utilizing a capping machine equipped with an enclosed frame effectively blocks external dust and impurities from contaminating the materials, thereby guaranteeing product purity. Furthermore, it prevents the leakage of corrosive vapors or liquids, safeguarding the production workshop and equipment from potential damage.

The equipment is driven by high-precision servo motors, achieving a torque control precision of up to ±0.1 N·m. This high level of precision ensures that every bottle cap is tightened securely without causing any damage to the bottle itself.

Absolutely. Through the servo system, you can flexibly adjust torque parameters to accommodate a wide variety of complex cap types—including child-resistant caps, long-tube pump heads, and spray nozzles—ensuring a perfect seal without causing any mechanical damage.

The equipment is outfitted with an intelligent capping detection system capable of monitoring cap placement in real-time. Should a missing or misaligned cap be detected, the system immediately identifies and addresses the issue, effectively preventing defective products from proceeding to subsequent stages of production.

Thanks to an optimized quick-change structural design, adjusting for different bottle and cap types requires no tools. The entire line changeover process can be completed within 15 minutes, making it ideally suited for flexible production models involving multiple product varieties and small batch sizes.

Yes. The entire machine is constructed from 304 stainless steel and features a seamless design, making it exceptionally easy to clean and sanitize. The equipment has successfully passed rigorous pharmaceutical-grade validation and is currently widely deployed on the production lines of renowned pharmaceutical and health supplement manufacturers.

The electrical components we select are all from top-tier international brands. Combined with a 304 stainless steel body, the equipment not only complies with GMP standards but also ensures a long service life in complex industrial environments.
