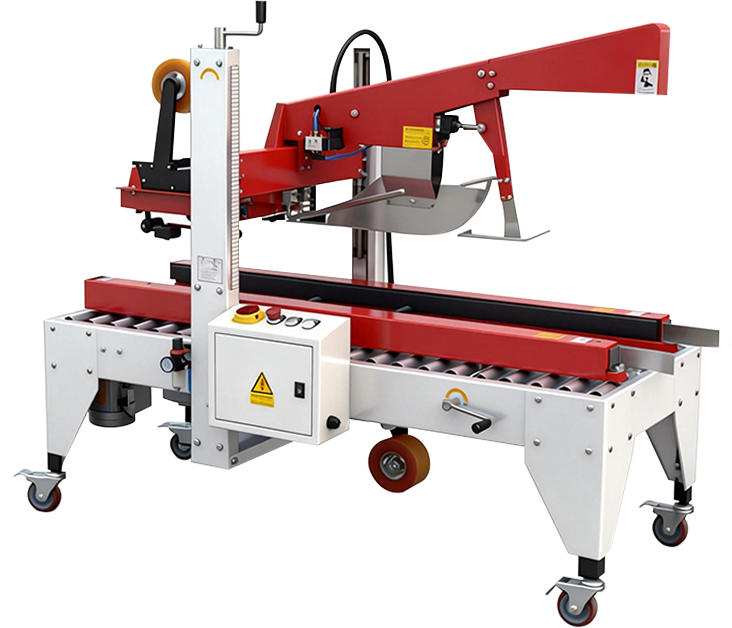

Fully automatic Case Sealer

Driven by robust dual-motor technology, Fully automatic Case Sealer delivers consistent, professional, and secure seals for every carton, ensuring your products are gallery-ready and transit-safe.

Get A Quote

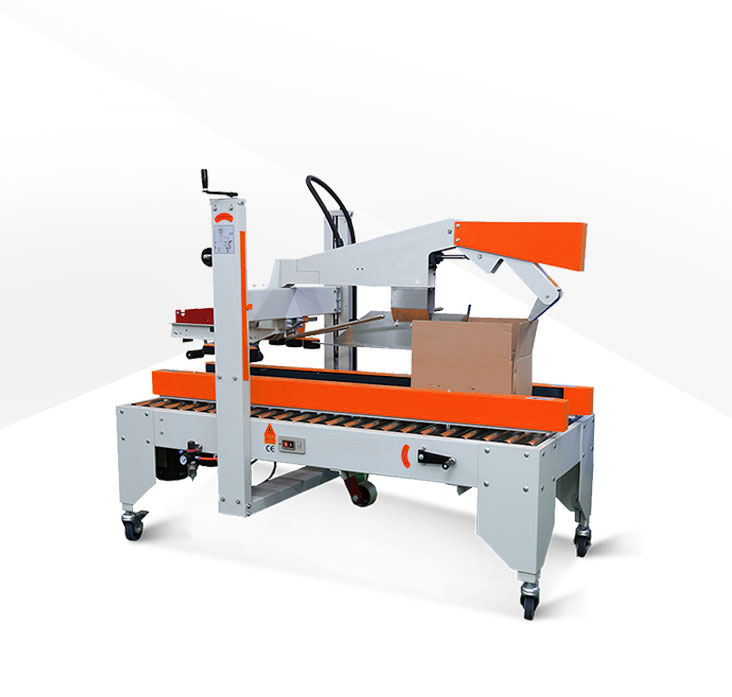

Fully Automatic Case Sealer

Direct Manufacturer from China 23+ years of industry experience

Irregularly Shaped Bottle Filling and Capping Machine
Save electricity
Unpacking and sealing can be completed in one go
75mm wide conveyor belt
Equipped with automatic packaging

Fully Automatic Case Sealer Technical parameters

Conveyor speed 18m/min
Carton Size L200-600×W150-500×H150-500mm
Power supply 220V 50/60Hz 1Phase
Power 400W
Adhesive Tape Width 55-72mm
Air Consumption 50NL/min
Air Compressing 0.6Mpa
Table height 600-750mm

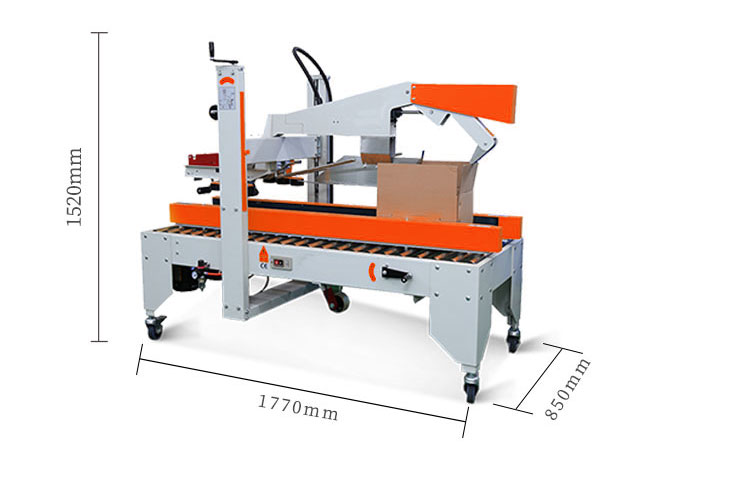

Machine size L1770×W850×H1520mm
Machine Weight 250kg

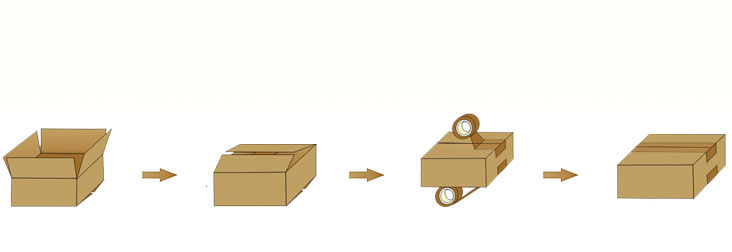

Folding and sealing the box in one go

No manual labor required, making box sealing more convenient.

  • Dual-motor stable conveyor
  • Quick sealing
  • Simple operation panel
  • Save electricity
  • Pneumatic components, stable pressure
  • Beautifully sealed boxes

Fully Automatic Case Sealer Showcase

SPECIFICATIONSN

SPECIFICATIONSN

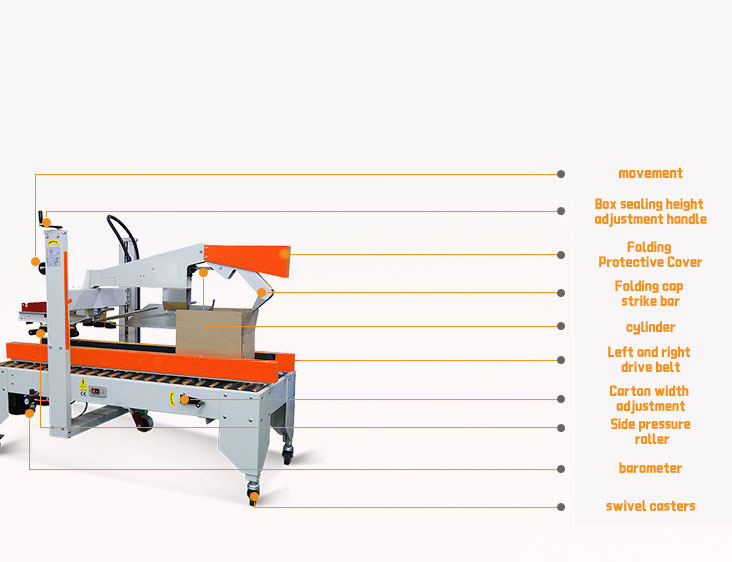

Product Details

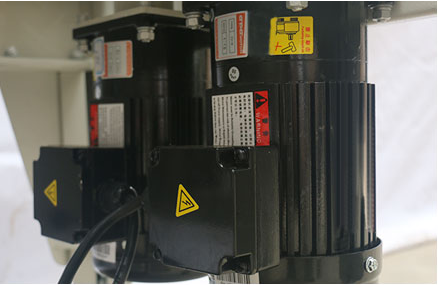

motor

Two conveyor belts each carry a 400W high-power motor, ensuring fast and stable product transport.

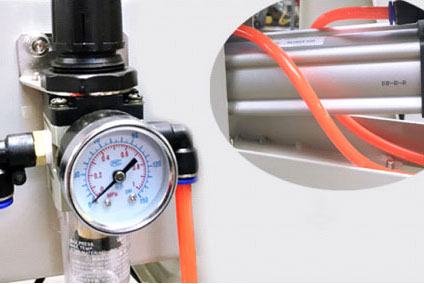

pneumatic components

Using pneumatic pressure to transmit the energy needed for sealing the boxes makes box transport more stable.

Simple panel

Equipped with an emergency stop button to improve operational safety.

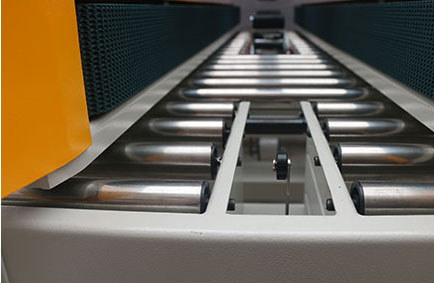

conveyor

The use of a wear-resistant patterned conveyor belt increases the friction between the carton and the product, ensuring smooth conveying and an aesthetically pleasing sealing effect.

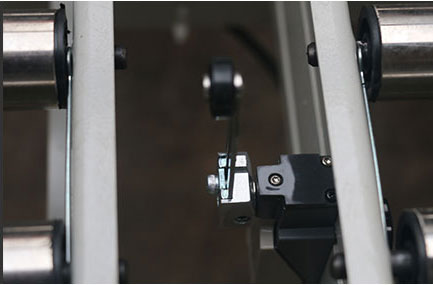

Protective devices

The case packing machine is equipped with blades featuring a safety guard to effectively prevent accidental punctures during operation.

Adjusting the size of the car dboard box in one minute

Adjusting the carton size is as simple as turning the handle; the adjustment can be completed in just one minute, saving time and providing convenience.

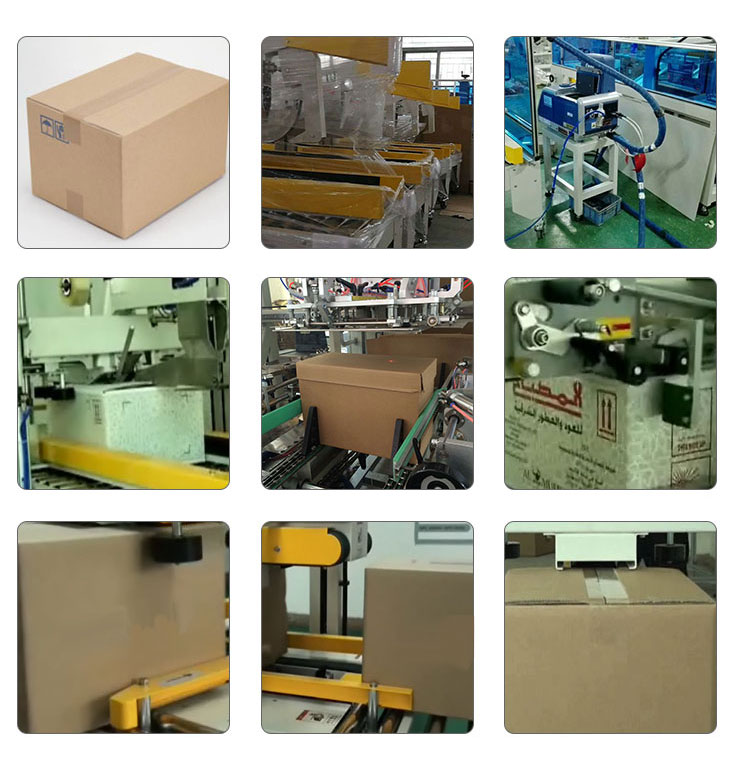

Applicable industries

Empowering various industries to achieve intelligent packaging for businesses

Packaging renderings

Fully Automatic Case Sealer FAQ

This equipment uses high-performance motors to automatically detect incoming cartons, fold the top flaps, and apply adhesive tape. It replaces manual taping, ensuring a professional finish while significantly reducing labor costs.

It is widely used in industries such as pharmaceuticals, cosmetics, food and beverage, e-commerce, and electronics—essentially any sector requiring high-volume corrugated box packaging.

Driven by dual 400W high-power motors, it reaches speeds of up to 18 cartons per minute (approx. 1,000+ per hour). This is 3–5 times faster than manual sealing and supports 24/7 continuous operation.

The machine features an intuitive control panel and a “one-key start” function. Adjusting for different box sizes is simple via manual handwheels; operators can become proficient with just 5 minutes of training.

Yes. The machine supports a wide range of carton dimensions. When switching between sizes, the operator simply adjusts the height and width using the integrated handwheels. The entire adjustment process typically takes less than 60 seconds.

The sealer is highly versatile and compatible with standard BOPP tape, kraft paper tape, and reinforced tape. It supports tape widths of 48mm, 60mm, or 75mm, providing a smooth, bubble-free seal with clean cuts.

Absolutely. It can function as a standalone unit or be seamlessly integrated into an automated packaging line, connecting with case erectors, case packer, conveyors, weighing scales, and inkjet coder.

Safety is a priority; the machine includes protective guards for moving parts and a prominent emergency stop button. Maintenance is minimal, requiring only periodic cleaning and lubrication of the drive components.
