Ketchup packaging has to protect the sauce, dispense it cleanly, seal reliably, and fit the way each customer buys and uses it. A 9 g fast-food sachet, a 25 g fries dipping cup, a 500 g household squeeze bottle, and a 3 kg restaurant pack are different packaging jobs. Each needs a package structure, filling method, closure, and inspection plan matched to its own product and sales channel.
This guide compares specific ketchup products with the packages and machines commonly used to pack them. The pack sizes below are examples for equipment planning, not universal standards. Confirm the final configuration with the actual recipe, package components, target market, and production trial.
| Ketchup product and example size | Package to specify | Typical machine sequence | Checks to include in a trial |
|---|---|---|---|
| 9 g single-serve ketchup for a burger or takeaway meal | Printed rollstock made into a 3-side-seal or 4-side-seal sachet | Multi-lane sachet form-fill-seal machine, positive-displacement filler, date coder | Dose consistency by lane, print registration, clean seal area, tear opening, leak performance |

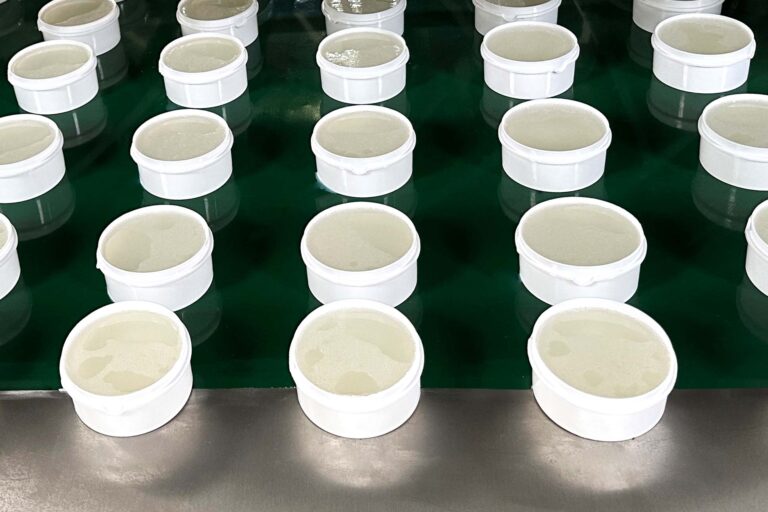

| 25 g ketchup portion for fries or a meal kit | Preformed round cup with a peelable lidding film | Cup denester, piston filler, lid placer, heat sealer, discharge and inspection | Clean, level cup rim; continuous lid seal; suitable peel force; leakage after stacking and handling |
| 500 g household ketchup for a retail shelf | Squeezable plastic bottle with a flip-top or dispensing closure | Bottle infeed, piston or other suitable positive-displacement filler, capper, labeler and coder; optional induction sealer | Fill weight, nozzle cut-off, cap fit, tamper feature, inverted leakage, bottle deformation |
| 250 g premium table ketchup | Glass bottle with a compatible screw or lug closure and liner | Bottle infeed, filler, capper, optional process-specific heating or vacuum equipment, labeler | Bottle handling, closure fit, fill level, leakage, and process performance where relevant |
| 1 kg retail refill ketchup | Premade stand-up pouch with a spout and cap | Rotary premade-pouch machine, pouch opening, filling through the specified opening, fitment or cap closing, coding | Pouch opening, clean fitment area, cap or fitment seal, upright stability, drop and leak performance |
| 3 kg restaurant ketchup for a dispensing station | Barrier bag with a tap inside a corrugated box (bag-in-box) | Bag or fitment handling, large-volume filler, fitment closing, case loading and coding | Fitment leak, bag puncture resistance, tap operation, dispensing residue, case stacking |
| 10 kg back-of-house ketchup for a high-volume kitchen | cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits | cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits | cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits |
cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits.
cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits.
cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits.
cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits.
cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits 21 CFR 117.40. cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits.
cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits.
cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits.
cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits.
cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits.
cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits.
cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits. cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits.
cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits.
cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits.
cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits.
cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits.
cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits.
cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits.
cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits.
cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits. cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits.
cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits.
cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits.
cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits.
cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits.
cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits.
If a retail refill pouch is being designed for recycling, compare the barrier and seal requirements with the collection and recycling systems in each sales market. A mono-material design may support recyclability goals, but material composition alone does not guarantee that a pack is collected or recycled locally. The Association of Plastic Recyclers Design Guide considers package design alongside system access, acceptance, and end-market demand.
Start with one defined SKU and write down the information the supplier needs to size the line:

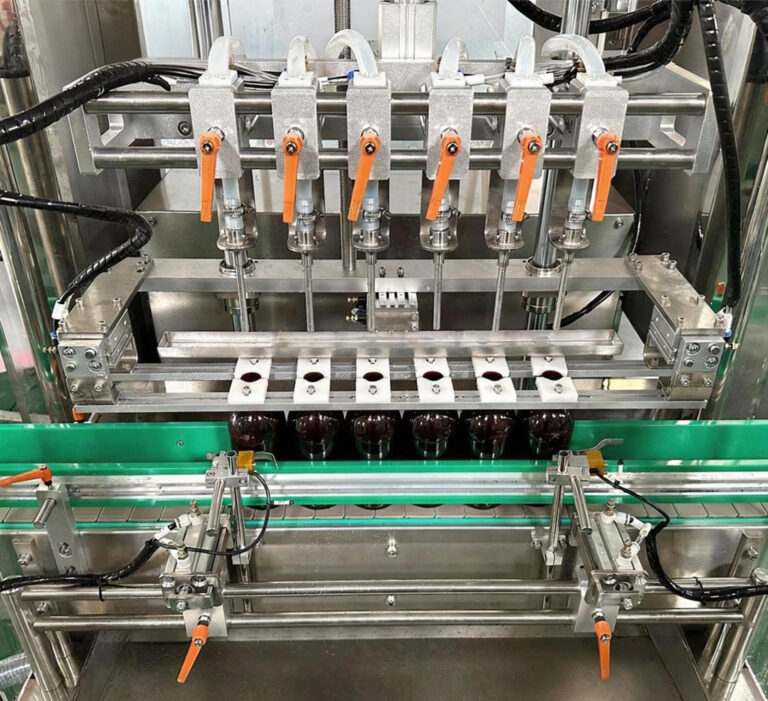

Then match the filling principle to the pack. A piston filler is often evaluated for measured ketchup doses into bottles, cups, and larger containers. A rotary lobe or other pump may fit a continuous or high-volume process. A sachet line adds film forming and heat sealing; a bottle line adds cap handling and application; a cup line adds denesting and lid sealing; a premade-pouch line adds pouch pickup, opening, and fitment handling. There is no single “ketchup packaging machine” that performs all of these tasks without format-specific tooling and stations.
For a small producer packing 500 g bottles, a semi-automatic filler and separate capper may fit the available output and labor plan. A brand shipping many 9 g portions may need a multi-lane sachet line. A restaurant-supply operation filling 3 kg bags or 10 kg pails needs larger-volume dosing and a compatible fitment or lid-closing station. Choose automation from the actual package and shift target, not from a broad label such as startup, mid-sized, or industrial.
For sachet applications, compare the machine layout with the required packet shape and lane count. GDHP’s VFFS machine range is one relevant internal reference when reviewing vertical form-fill-seal options. Confirm that the specific model supports the required ketchup filling method, film, seal format, and output before treating it as a match.
Machine settings alone do not prove that a package is sound. Build a trial plan around the finished package and the likely failure:
ASTM F88/F88M measures seal strength on a strip cut from flexible barrier material and can support process validation and control for flexible packs. It answers a different question from the full-lid peel test in ASTM F2824. Neither method creates a universal pass value for ketchup packaging. Set acceptance limits for the actual package with the brand, material supplier, and process owner, then pair force measurements with a suitable leak or integrity check.
cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits.
cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits.
cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits.
cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits, 21 CFR Part 114 cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits.
cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits
cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits
cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits
cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits.
cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits.
cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits.
cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits.
cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits 21 CFR 117.40, cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits.
cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits.
cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits.
cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits.
La Technologie : Ils utilisent une co-extrusion multicouche. Une couche EVOH est intégrée dans le plastique, agissant comme une barrière absolue contre l'oxygène pour maintenir le ketchup rouge et frais.
Le Mécanisme : Capsulage à la vapeur et sous vide. - La vapeur stérile est injectée juste avant l’application du couvercle. À mesure que la vapeur se refroidit et se condense, elle crée un joint sous vide puissant et inviolable.
La Technique : Les éclaboussures acides ruinent les joints de chaleur. Nous concevons des buses de remplissage de bas en haut et utilisons des barres de dénudage pour presser complètement à sec la zone d’étanchéité avant que les mâchoires de chauffe ne se referment.
La norme : Exiger toujours une classification IP69K. Cela garantit que les panneaux électriques et les servomoteurs de la machine résistent à des lavages chimiques durs, à haute pression, sans court-circuit.
Le retour sur investissement : Il fournit des des lavages internes automatisés. En éliminant le besoin de démonter et de frotter manuellement des pièces en acier lourdes, vous réductionnez considérablement les coûts de main-d’œuvre et les arrêts de la machine.
La stratégie : N°. Visez 75% à 80% de capacité maximale. Cette “ vitesse tampon ” prévient les vibrations violentes, réduit l’usure des composants et offre en réalité une meilleure Efficacité Globale des Équipements (OEE) sur une équipe de 24 heures.
Remplissage de Pistons de Précision : Leur systèmes garantissent une précision volumétrique pour les fluides épais, éliminant le cauchemar des gouttes de buse et des éclaboussures partout.
Tolérance Thermique : L'équipement GDHP prend en charge le remplissage à chaud (Constante 95°C) de manière native, équilibrant parfaitement la stérilisation du produit avec des caractéristiques d'écoulement optimales.
Durabilité Sanitaire : Conçu en acier inoxydable de qualité SS316L et SS304 alimentaire, leurs machines résistent facilement à la corrosion acide et respectent les normes d'hygiène GMP strictes.
Automatisation PLC sans faille : Toute l'architecture—remplissage, bouchage, refroidissement, étiquetage et conditionnement—est entièrement synchronisée, vous permettant de basculer entre les formats de bouteilles et de sachets avec un temps d'arrêt minimal.
