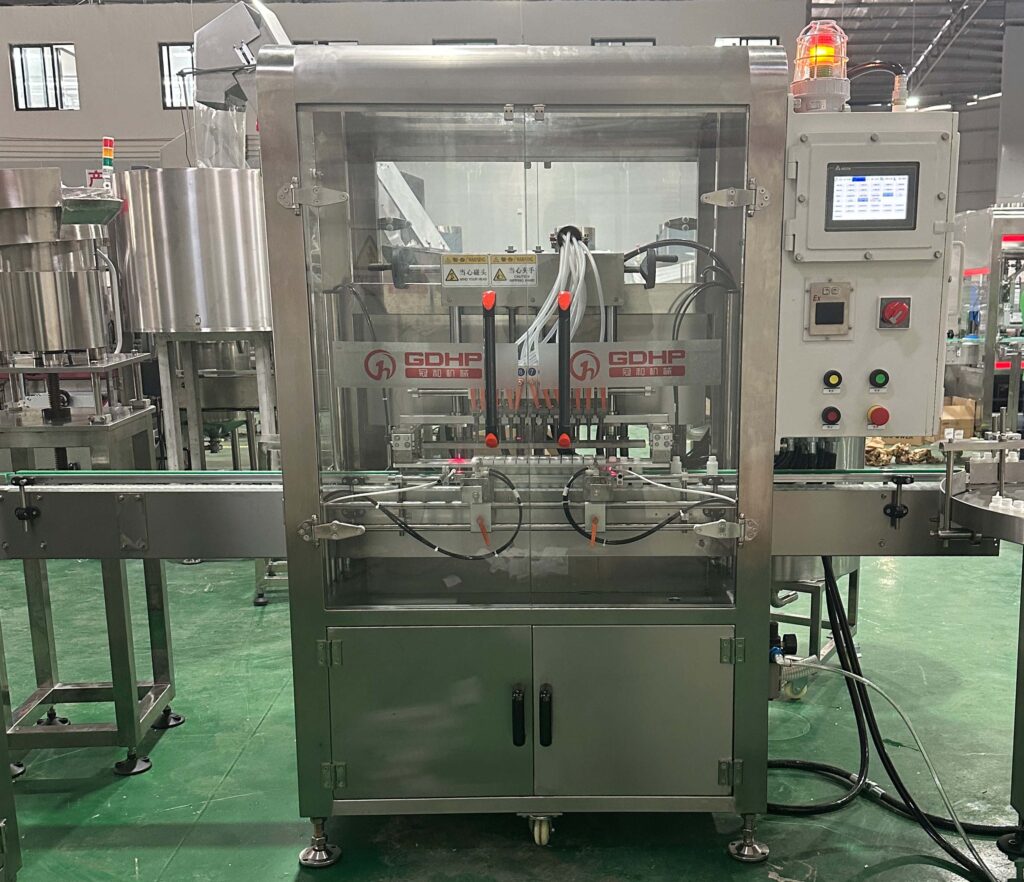

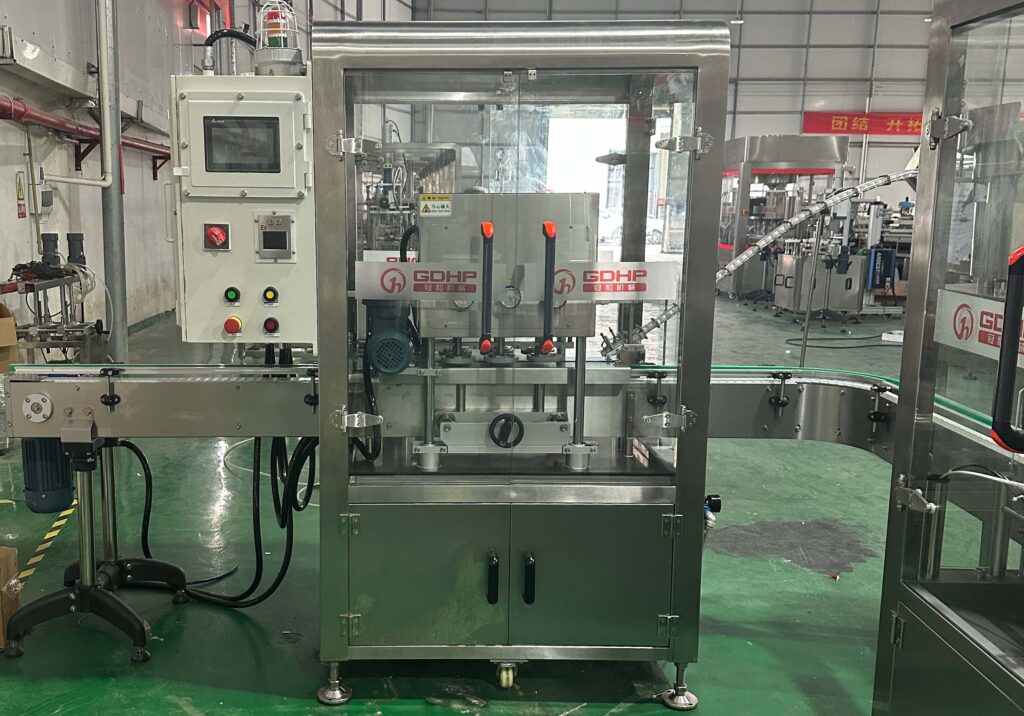

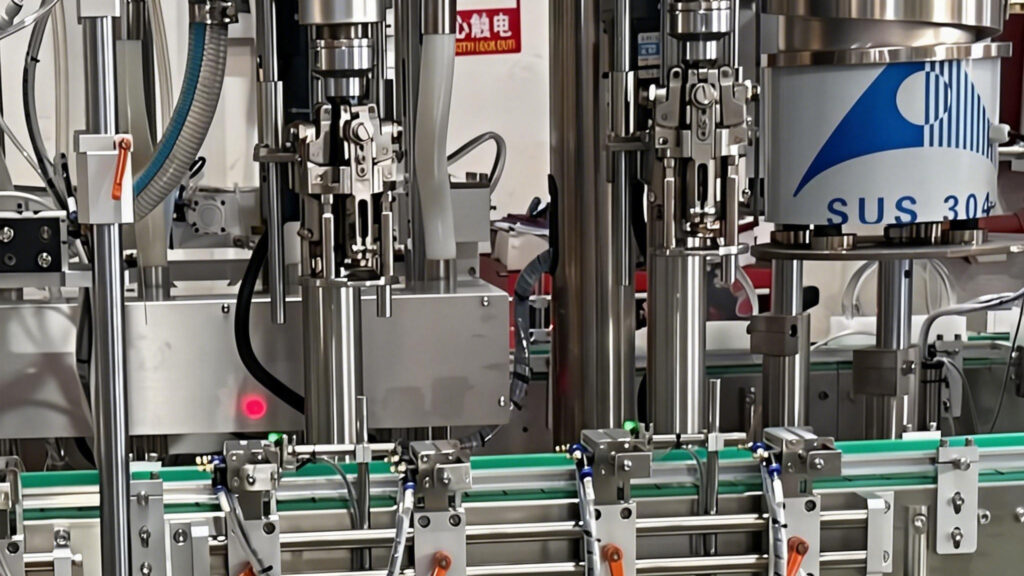

An American disinfectant manufacturer required its filling equipment to be compatible with bottle sizes of 30ml, 60ml, 80ml, and 100ml. Given that the disinfectant contains isopropyl alcohol—classified as a flammable and explosive substance—we implemented an explosion-proof filling design. This comprehensive safety approach encompasses everything from explosion-proof motors, anti-static circuitry, and high-strength stainless steel materials to thickened tempered glass, ensuring absolute safety and reliability. The entire production line supports multi-specification manufacturing and features a conveyor belt with an adjustable-height design. Both the filling and capping processes are controlled via a PLC system, enabling rapid switching between the production of different bottle types.

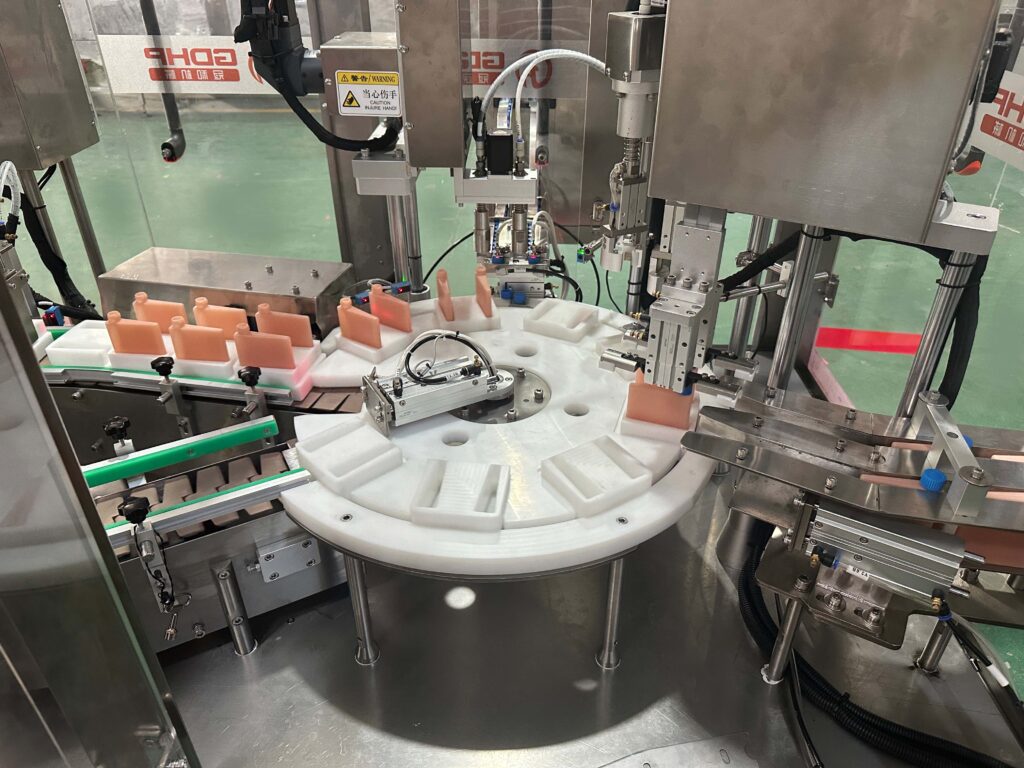

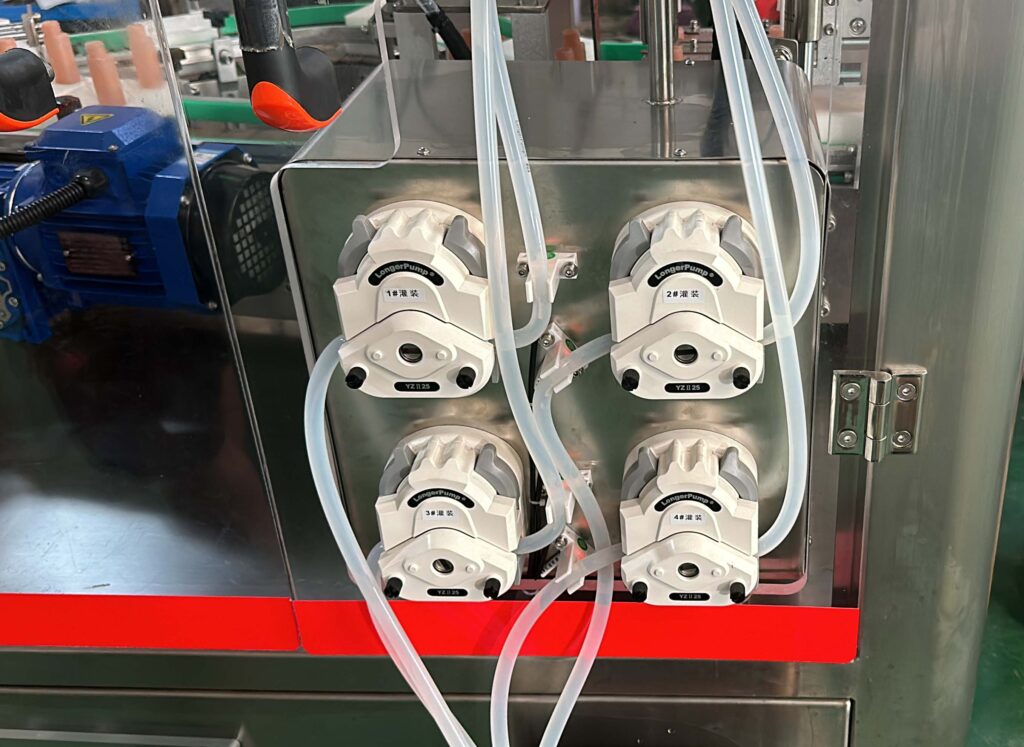

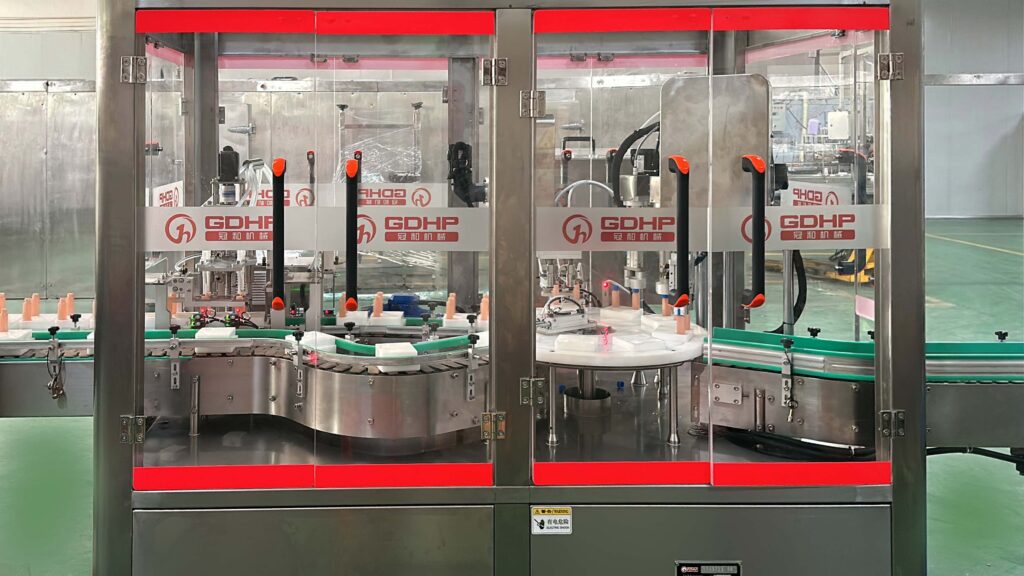

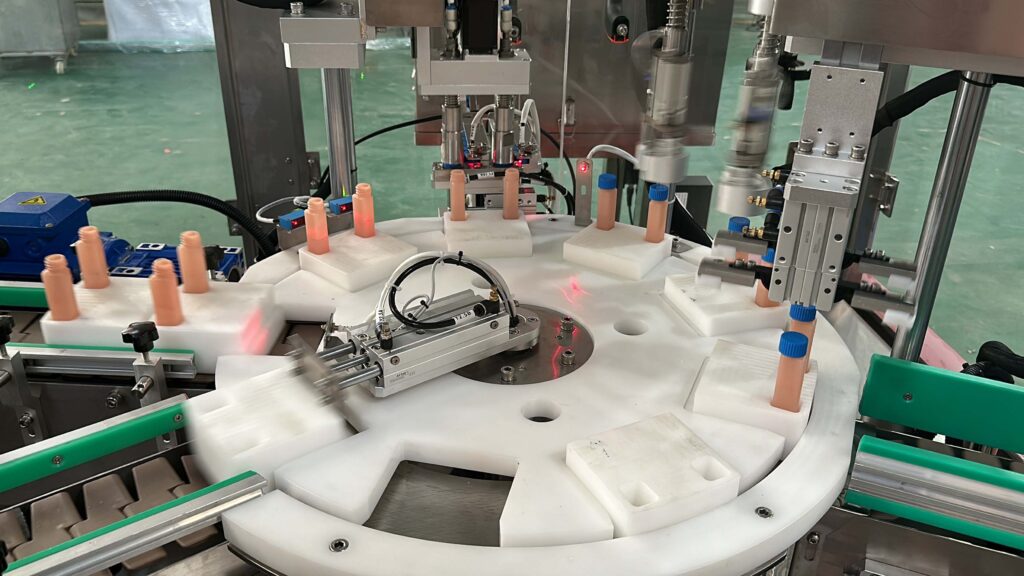

This French client specializes in supplying biochemical reagents for hospital diagnostic equipment. To ensure complete compatibility between their reagents and existing clinical analyzers, they utilize highly specialized, irregularly shaped packaging bottles. GDHP addressed this requirement by employing an integrated filling machine equipped with specialized fixtures, enabling rapid switching between different bottle types and significantly reducing changeover times. The system features high-precision peristaltic pump filling technology, ensuring both accuracy and sterility. The machine’s exterior stainless steel components are constructed from Grade 304 material; parts in contact with the product utilize medical-grade silicone tubing, while the filling heads are made of PP or PTFE. The equipment fully complies with FDA and cGMP standards.

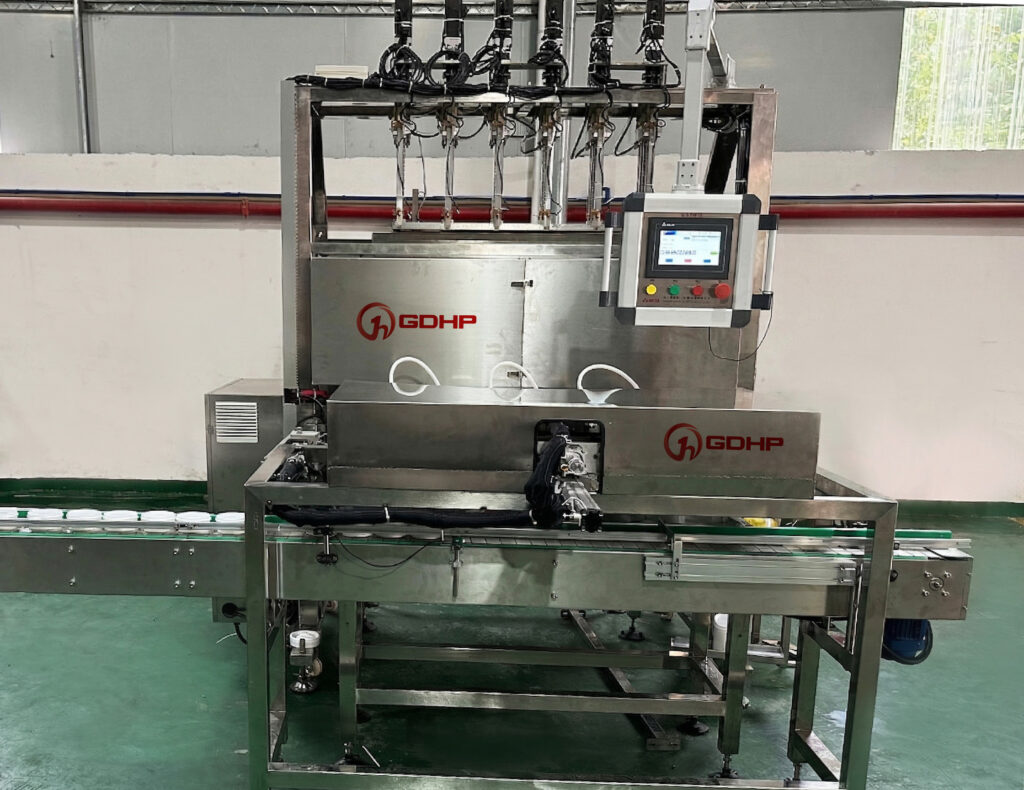

A Polish client, specializing in the production of shoe cleaning pastes, sought to provide a convenient solution for consumers who frequently clean their footwear. They required a system capable of performing hot filling, followed by rapid cooling and solidification of the product. GDHP collaborated closely with this client to design and construct a temperature-controlled hot-filling and cooling tunnel system. The filling heads and piping were equipped with thermal insulation features to effectively prevent material blockages. The cooling tunnel was divided into three distinct temperature zones, facilitating a gradual transition of the cleaning paste from a liquid state into a solid paste consistency.

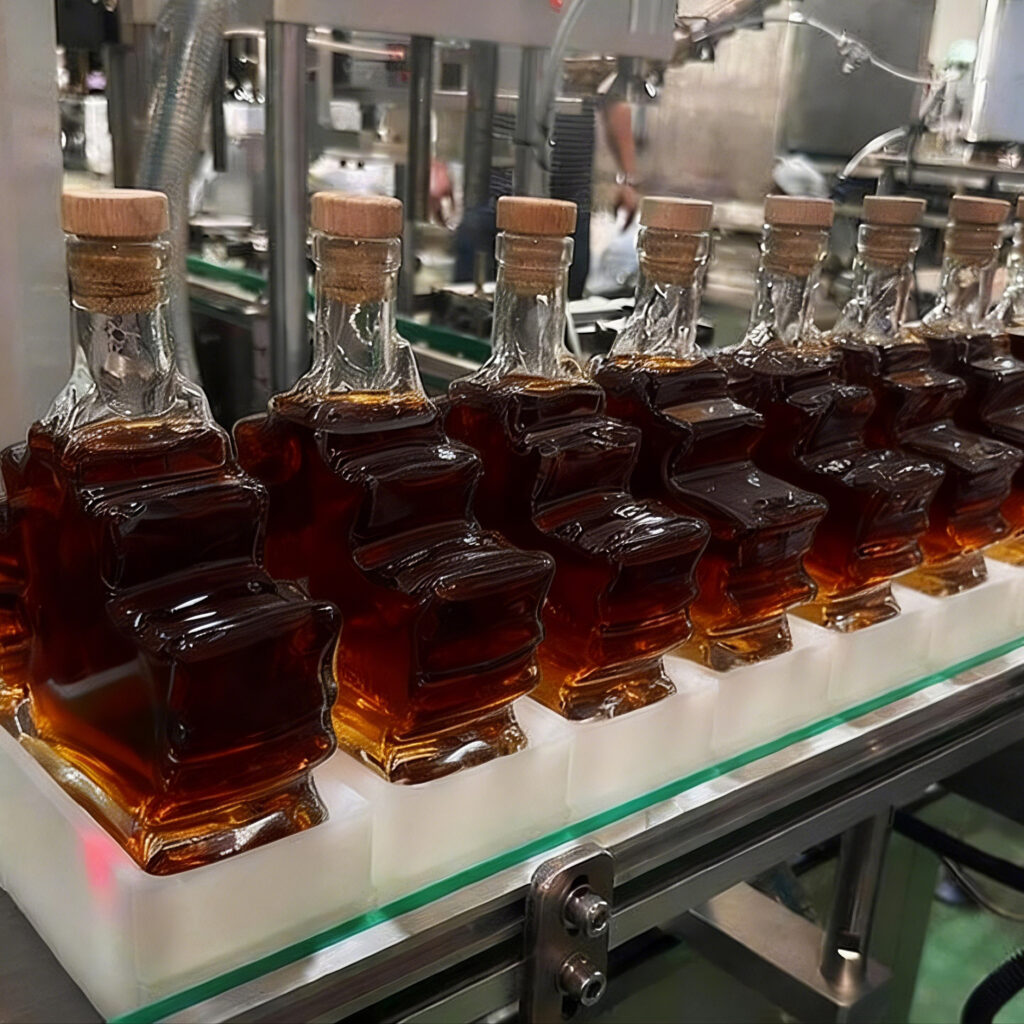

This Canadian client required a filling solution specifically tailored for maple syrup containers ranging in capacity from 100 to 1000 ml. Given the client’s extensive variety of bottle shapes and cap styles—including several uniquely shaped, non-standard bottle designs—the entire production line was designed around a “mold circulation system.” This design ensures exceptional versatility: switching between different bottle types can be accomplished effortlessly simply by exchanging the corresponding molds. Furthermore, considering that the product is prone to foaming, the equipment is specially outfitted with a high-precision, gear-pump-based hot-filling system featuring integrated temperature control capabilities. This system is further complemented by a servo-controlled filling nozzle lifting mechanism, effectively preventing foam overflow.

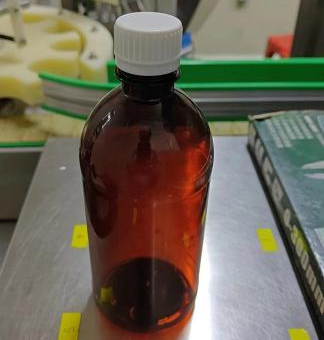

An Pakistani manufacturer of cough syrup sought to upgrade their operations from a semi-automated setup to a fully automated 500ml production line. Their requirements were explicit: the machinery had to be fully GMP-compliant and designed to ensure a completely sterile processing environment. In response, we provided a system featuring a 304 stainless steel frame, with all product-contact parts constructed from 316 stainless steel. The filling mechanism utilizes high-precision peristaltic pumps to ensure accurate and sterile dosing. Furthermore, the filling nozzles are equipped with specialized anti-leak devices and are paired with a drip-catching tray, offering a dual-layer defense against leakage to ensure a clean filling process free from stringing or dripping.
